CB-F-12.000M-18-3050-4085-50

Crystals Overview

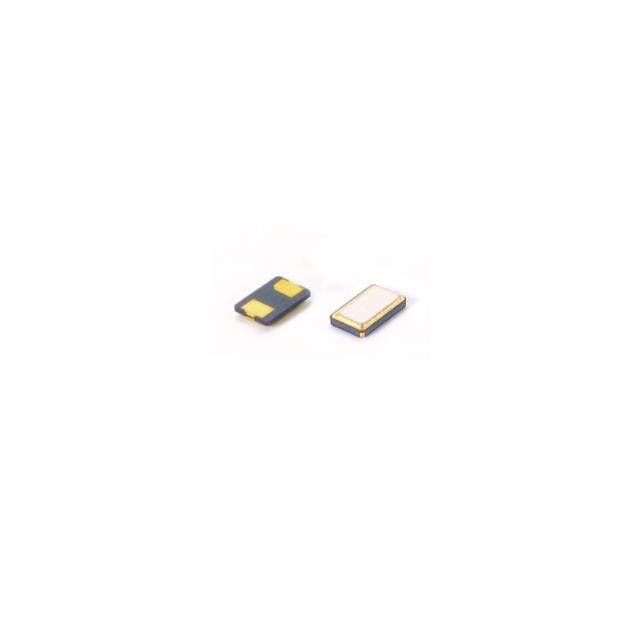

The CB-F-12.000M-18-3050-4085-50 is a surface-mount crystal oscillator manufactured by CEC Xtal. It operates at a fundamental frequency of 12.000 MHz with a load capacitance of 18 pF. The component features a ±30 ppm frequency tolerance and maintains ±50 ppm stability across the operating temperature range of -40°C to +85°C. It utilizes a 2-SMD, no-lead package design suitable for automated assembly processes.

Crystals Feature Summary

• Provides accurate electronic operations through precise frequency control
• Maintains frequency consistency under various environmental conditions
• Supports surface mount technology for compact circuit integration

Crystals Applications

• Electronic timing circuits requiring stable clock signals
• Microcontroller system oscillators
• Communication device frequency references

Crystals Procurement Notes

Verify that the specific part number matches the required frequency, load capacitance, and tolerance specifications for your design. Confirm the package type and pin configuration align with your PCB footprint. Ensure the operating temperature range meets your application's environmental requirements before finalizing procurement decisions.

Crystals Selection Notes

Select this component when a 12 MHz fundamental frequency crystal is needed with 18 pF load capacitance. Consider the ±30 ppm tolerance and -40°C to +85°C operating range for suitability in standard commercial applications. Evaluate the 2-SMD no-lead package against available board space and assembly capabilities.

Crystals Part Context

This crystal belongs to the CEC Xtal surface-mount series designed for general-purpose timing applications. The model designation indicates specific electrical parameters including frequency, capacitance, and tolerance levels. It represents a standard solution for integrating precise clock sources into compact electronic systems requiring reliable frequency generation.

Crystals Replacement Considerations

Cross-reference alternative suppliers offering identical 12 MHz, 18 pF, ±30 ppm specifications in 2-SMD packages. Verify that substitute components match the exact operating temperature range and physical dimensions to ensure compatibility without redesigning the host circuit board or assembly process.
