CB3-3C-50M000000

Oscillators Overview

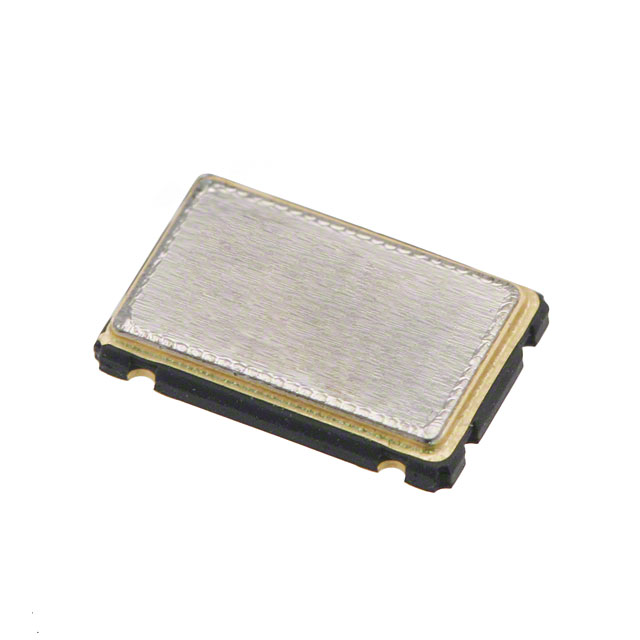

The CB3-3C-50M000000 is a standard clock oscillator from CTS-Frequency Controls operating at 50 MHz. It utilizes HCMOS and TTL output logic levels and functions with a 5V supply voltage. The device features an enable/disable control pin for power management. It is housed in a compact 4-SMD, No Lead package designed for surface-mount assembly.

Oscillators Feature Summary

• Standard clock oscillator providing stable frequency generation
• Integrated enable and disable functionality for power control
• Compatible with HCMOS and TTL logic interfaces

Oscillators Applications

• General purpose clock signal distribution
• Digital system timing references
• Embedded controller synchronization

Oscillators Procurement Notes

Verify the complete part number including frequency suffix to ensure correct operation. Confirm package type matches PCB footprint requirements. Check datasheet for enable pin configuration details. Ensure supply voltage aligns with system design specifications before procurement.

Oscillators Selection Notes

Select this component when a 50 MHz standard clock is required with enable control. Consider the 4-SMD package size for space-constrained designs. Verify compatibility with existing HCMOS or TTL logic families in the target application circuit.

Oscillators Part Context

This model belongs to the CB3 series of standard clock oscillators from CTS-Frequency Controls. These are mature solutions supported but not recommended for new designs. Users requiring updated alternatives should consult current product lines for modern replacements.

Oscillators Replacement Considerations

CTS indicates legacy products are not recommended for new designs. Consult official documentation for current replacement recommendations. No specific substitute part numbers are confirmed in available public data.
