CB3LV-3I-64M000000

Oscillators Overview

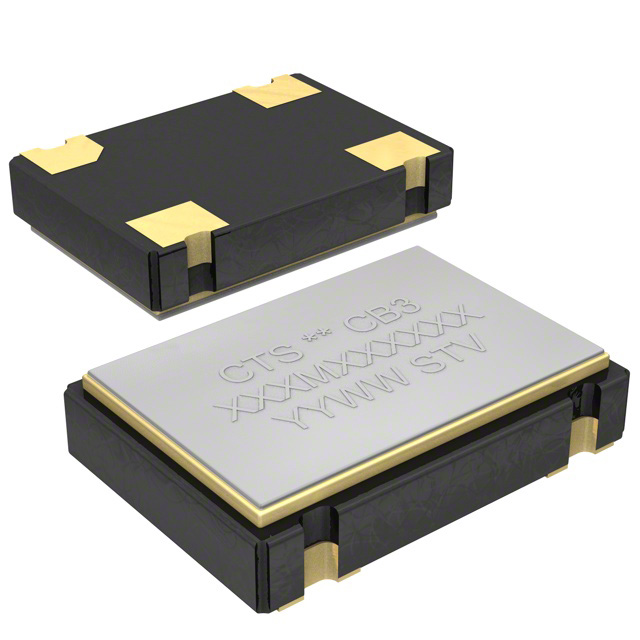

The CB3LV-3I-64M000000 is a standard crystal oscillator manufactured by CTS-Frequency Controls. It operates at a frequency of 64 MHz with a supply voltage of 3.3V. The device features HCMOS and TTL output formats and includes an enable/disable function. Frequency stability is rated at ±50 ppm across the operating temperature range of -40°C to +85°C. The component utilizes a surface-mount 4-SMD, no-lead package measuring 7.00mm x 5.00mm with a maximum height of 1.80mm. Maximum supply current is 40mA, while disabled current is 10µA.

Oscillators Feature Summary

• Integrated enable and disable functionality for power management
• Dual output compatibility supporting both HCMOS and TTL logic levels
• Industrial-grade operational temperature range from -40°C to +85°C

Oscillators Applications

• Digital signal processing systems requiring precise clock timing
• Communication equipment utilizing standard CMOS/TTL interfaces
• Embedded control units in industrial environments

Oscillators Procurement Notes

Verify that the specific part number matches the required frequency and voltage specifications before procurement. Confirm that the supplier provides official documentation confirming RoHS compliance and REACH status. Ensure the packaging type aligns with automated assembly requirements, as the component is available in cut tape or reel formats. Cross-reference the manufacturer date code to ensure inventory freshness and reliability standards are met for the intended application.

Oscillators Selection Notes

Select this component when a 64 MHz clock source is required with low power consumption during inactive states. The 3.3V supply voltage makes it suitable for modern digital circuits. The wide temperature range supports deployment in harsh industrial settings. Consider the physical dimensions and SMD package type for PCB layout constraints. Verify interface compatibility with downstream logic gates due to the dual HCMOS/TTL output support.

Oscillators Part Context

This oscillator belongs to the CB3LV series, which represents low-voltage standard oscillators from CTS-Frequency Controls. The series is designed for applications demanding reliable timing signals in compact surface-mount configurations. The CB3LV line typically offers various frequencies and output types to accommodate diverse system requirements while maintaining consistent performance characteristics across the product family.

Oscillators Replacement Considerations

Publicly confirmed parameter-equivalent substitutes include the CB3LV-3C-64M000000 variant. When replacing, verify that the substitute maintains identical frequency, voltage, and package dimensions. Ensure the replacement part supports the same enable/disable functionality and output logic levels to guarantee circuit compatibility without redesign.
