Product Detailed Parameters
- Description：LED ORANGE CLEAR SMD
- Series：-
- Mfr：Solidlite
- Package：Bulk
- Color：Orange
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：-
- Lens Style：Rectangle with Flat Top
- Lens Size：2.20mm x 1.40mm
- Voltage - Forward (Vf) (Typ)：1.7V ~ 2.5V
- Current - Test：10mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：610nm
- Features：-
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：2.20mm L x 1.40mm W
- Height (Max)：1.25mm
- Grade：-
- Qualification：-
Download product information
Overview

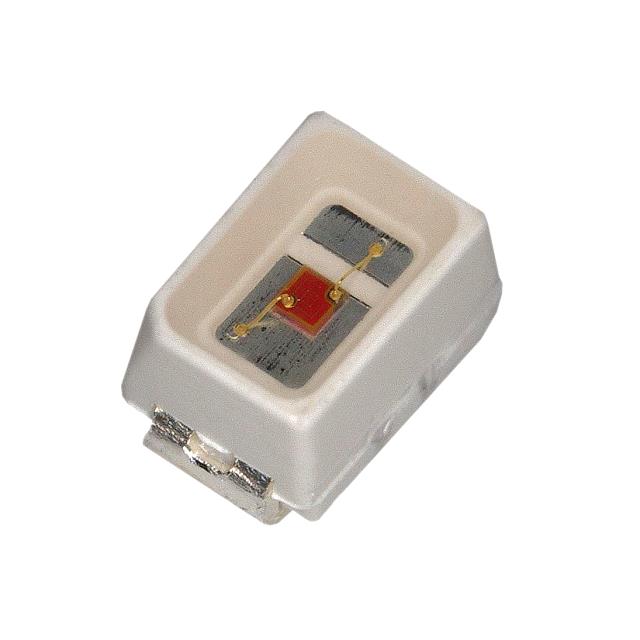

The CBL2214A-ZON-020mA is a surface-mount discrete LED from Solidlite, featuring an orange lens with a colorless, flat-top rectangular design. It measures 2.20mm in length and 1.40mm in width. The component operates with a typical forward voltage of 1.7V to 2.5V and is tested at 10mA. It provides a viewing angle of 120 degrees and emits light within the 600nm to 610nm wavelength range.
Feature Summary
- Independent surface-mount configuration for compact circuit integration
- Rectangular lens style with a flat top profile
- Wide 120-degree viewing angle for broad visibility
Applications
- Discrete status indication on electronic boards
- Panel-mounted visual signaling devices
- Consumer electronics status indicators
Procurement Notes
Verify the specific ordering suffix against official Solidlite documentation to ensure correct binning and optical characteristics. Confirm that the requested part matches the exact electrical parameters required for the target application circuit. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current availability status before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, independent orange indicator is required for surface-mount assembly processes. Consider the 1.7V to 2.5V forward voltage range for appropriate driver circuit design. Ensure the 2.20mm x 1.40mm footprint aligns with the available PCB space constraints and mounting requirements of the final product design.
Part Context
This part belongs to the 2214 series of surface-mount LEDs manufactured by Solidlite. The series offers various color options including red and green variants, sharing similar physical dimensions and mounting characteristics. The CBL2214A-ZON-020mA specifically denotes the orange emission variant within this standardized package family.
Replacement Considerations
Direct substitutes include other 2214 series components such as the CBL2214A-ZRN-020mA for red illumination or CBL2214A-ZGN-020mA for green, provided the color change is acceptable for the application.
