CBM08YTAG101

Chip Ferrite Bead Overview

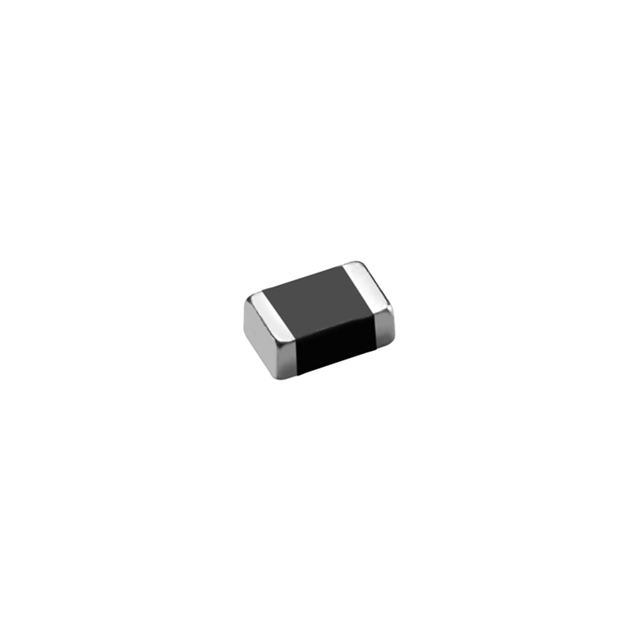

The CBM08YTAG101 is a chip bead manufactured by Viking Tech Corporation. It features a resistance of 100 Ohms at 100 MHz and operates within the 1806 (4516 Metric) package size, also identified as 1808 in some listings. The component supports a current rating of 3A with a DC resistance of 40mOhm. It is designed for surface mount applications and complies with RoHS standards, being lead-free.

Chip Ferrite Bead Feature Summary

• Provides signal integrity management through high-frequency noise suppression
• Supports high-current operation up to 3A
• Utilizes compact surface mount packaging for automated assembly

Chip Ferrite Bead Applications

• High-frequency communication equipment
• Automotive electronics systems
• Industrial control circuits

Chip Ferrite Bead Procurement Notes

Verify the exact package designation, as sources list both 1806 and 1808. Confirm the manufacturer is Viking Tech Corporation. Ensure the component meets specific RoHS requirements if applicable to your project. Cross-reference the 100 Ohm impedance at 100 MHz against circuit design specifications.

Chip Ferrite Bead Selection Notes

Select this component when a 100 Ohm impedance at 100 MHz is required for noise filtering. The 3A current rating suits power lines or data buses carrying significant current. The 40mOhm DC resistance minimizes voltage drop. Ensure the PCB footprint matches the 1806/1808 metric dimensions.

Chip Ferrite Bead Part Context

Viking Tech Corporation specializes in passive components including thin film resistors and chip beads. This ferrite bead belongs to their range of high-frequency inductors and resistors used in precision instruments and automotive electronics. The company focuses on integrating advanced processing technologies for reliable performance.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative manufacturers.
