CBP-1000F+

Overview

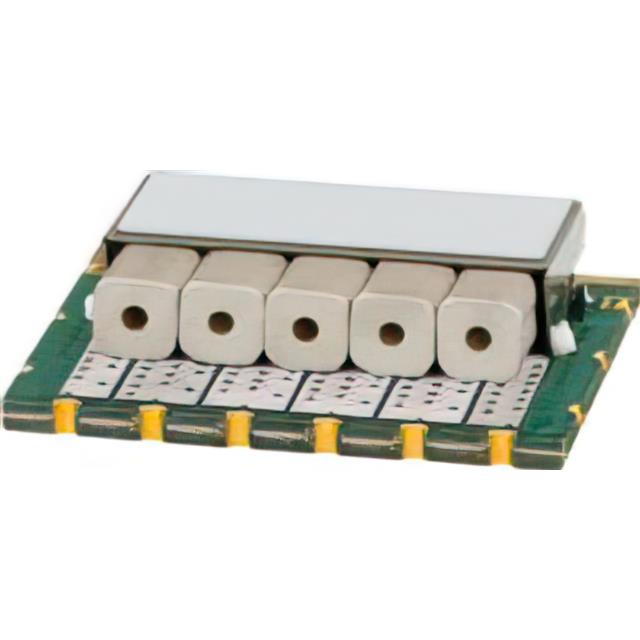

The CBP-1000F+ is a ceramic resonator bandpass filter manufactured by Mini-Circuits. It operates within a frequency range of 900 to 1100 MHz, providing a center frequency of 1 GHz with a bandwidth of 200 MHz. The component features an insertion loss of 1.6 dB and is designed for 50 Ohm systems. It utilizes a 17-SMD module package, offering a low-profile design suitable for surface mount applications.

Feature Summary

• Utilizes coaxial-ceramic-resonator technology for signal conditioning
• Designed as a bandpass filter with specific frequency selectivity
• Constructed in a low-profile SMD module format

Applications

• RF signal filtering in communication systems
• Signal conditioning in radio frequency circuits
• Frequency selection in wireless infrastructure

Procurement Notes

Verify the exact datasheet version from Mini-Circuits or authorized distributors to confirm current specifications. Ensure compatibility with 50 Ohm system impedance requirements. Check for RoHS compliance status indicated by the '+' suffix. Confirm package dimensions against PCB layout constraints before ordering.

Selection Notes

Select this component when a fixed center frequency of 1 GHz is required. Consider the 200 MHz bandwidth relative to signal spectrum needs. Evaluate the 1.6 dB insertion loss impact on system gain. Verify that the SMD package type matches assembly capabilities.

Part Context

This part belongs to the Mini-Circuits CBP series of coaxial-ceramic-resonator filters. These filters typically offer passbands from DC up to 6 GHz with fractional bandwidths ranging from less than 1% to 25%. The series is known for low profile designs and robust performance in RF applications.

Replacement Considerations

Consult Mini-Circuits official documentation for direct substitutes. Cross-reference center frequency and bandwidth requirements carefully. Verify package compatibility if replacing with similar models from other manufacturers.
