CBP-1023A+

Overview

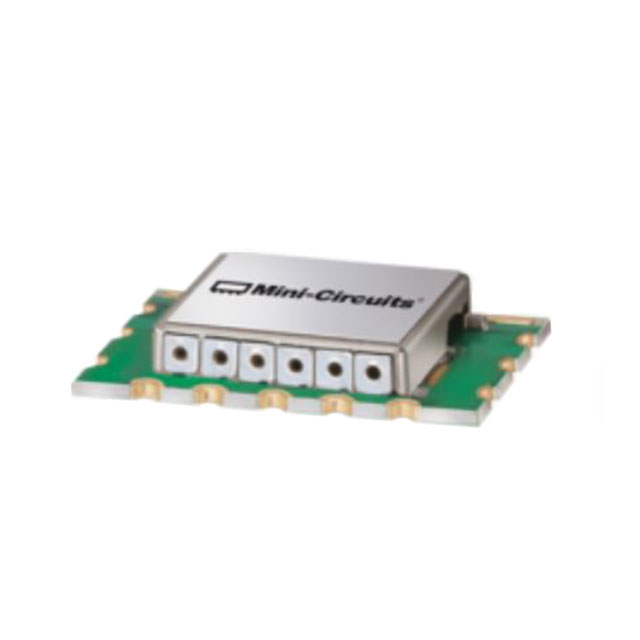

The CBP-1023A+ is a coaxial-ceramic resonator bandpass filter manufactured by Mini-Circuits. It operates with a center frequency of 1.023 GHz and provides a bandwidth of 36 MHz. The component features a 50 Ohm impedance and utilizes a 16-SMD module package for surface mount installation. Designed for robust performance, it supports an operating temperature range from -40°C to +85°C. This filter is part of the CBP series, which offers low profile designs suitable for various RF applications.

Feature Summary

• Utilizes coaxial-ceramic resonator technology for stable signal filtering
• Designed as a low-profile surface mount device for compact integration
• Provides defined passband characteristics centered at 1.023 GHz

Applications

• RF signal conditioning in communication systems
• Intermediate frequency filtering in receivers
• Signal processing in industrial control equipment

Procurement Notes

Verify the specific datasheet version for the CBP-1023A+ to confirm exact electrical tolerances and mechanical dimensions before finalizing design integration. Ensure that the 16-SMD package footprint matches the target PCB layout requirements. Cross-reference the manufacturer's official documentation for any updates regarding material composition or environmental compliance standards relevant to the deployment region.

Selection Notes

Select this component when a narrow bandpass characteristic around 1.023 GHz is required within a constrained physical space. The 16-SMD module format facilitates automated assembly processes. Consider the thermal operating range of -40°C to +85°C to ensure reliability under expected environmental conditions. Verify impedance matching requirements against the surrounding circuitry to maintain optimal signal integrity.

Part Context

The CBP-1023A+ belongs to the CBP series of coaxial-ceramic resonator filters produced by Mini-Circuits. This series is characterized by its ability to offer passbands ranging from DC up to 6 GHz with fractional bandwidths from less than 1% to 25%. These filters are engineered for high stability and are commonly utilized in applications requiring precise frequency selection and rejection of out-of-band signals.

Replacement Considerations

Consult Mini-Circuits official substitution guides for compatible alternatives. Verify that any substitute maintains the 1.023 GHz center frequency, 36 MHz bandwidth, and 16-SMD package compatibility.
