CBP-2150AN+

Overview

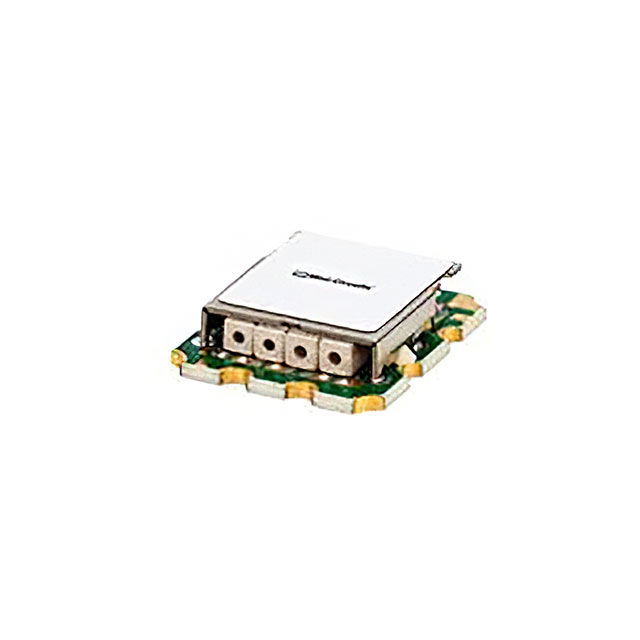

The CBP-2150AN+ is a ceramic resonator bandpass filter manufactured by Mini-Circuits. It operates within a frequency range of 2000 to 2300 MHz, with a center frequency of 2150 MHz and a bandwidth of 300 MHz. The component features an insertion loss between 1.2 and 1.8 dB and maintains a 50 Ohm impedance. Designed for surface mount technology (SMT), it utilizes a compact module package with a maximum height of 8.89 mm. This filter is part of the CBP series, offering low-profile construction suitable for high-frequency signal processing applications.

Feature Summary

• Utilizes ceramic resonator technology for stable bandpass filtering performance
• Designed for surface mount integration with a low-profile module form factor
• Provides defined passband characteristics centered at 2150 MHz

Applications

• Wireless communication systems requiring specific frequency selection
• RF front-end modules in consumer electronics
• Test and measurement equipment signal conditioning

Procurement Notes

Verify the specific suffix designation against official Mini-Circuits documentation to ensure compatibility with required impedance and tolerance specifications. Confirm that the SMT package dimensions align with the target PCB layout constraints. Check for RoHS compliance status updates directly from the manufacturer's current datasheet releases prior to finalizing procurement orders.

Selection Notes

Select this component when a fixed center frequency of 2150 MHz with a 300 MHz bandwidth is required. Consider the 1.2 to 1.8 dB insertion loss specification for system gain budget calculations. Ensure the design supports surface mount assembly techniques compatible with the specified module footprint and height limitations.

Part Context

This component belongs to Mini-Circuits' CBP series of coaxial-ceramic resonator filters. These devices are engineered for applications demanding precise frequency control and low insertion loss. The series typically covers frequencies from DC up to 6 GHz, providing fractional bandwidths ranging from less than 1% to 25% in various package styles.

Replacement Considerations

Consult Mini-Circuits official substitution guides for equivalent models within the CBP series or alternative ceramic filter families. Verify that any substitute matches the 2150 MHz center frequency, 300 MHz bandwidth, and 50 Ohm impedance requirements without altering the physical mounting profile.
