CBP-2250A+

Overview

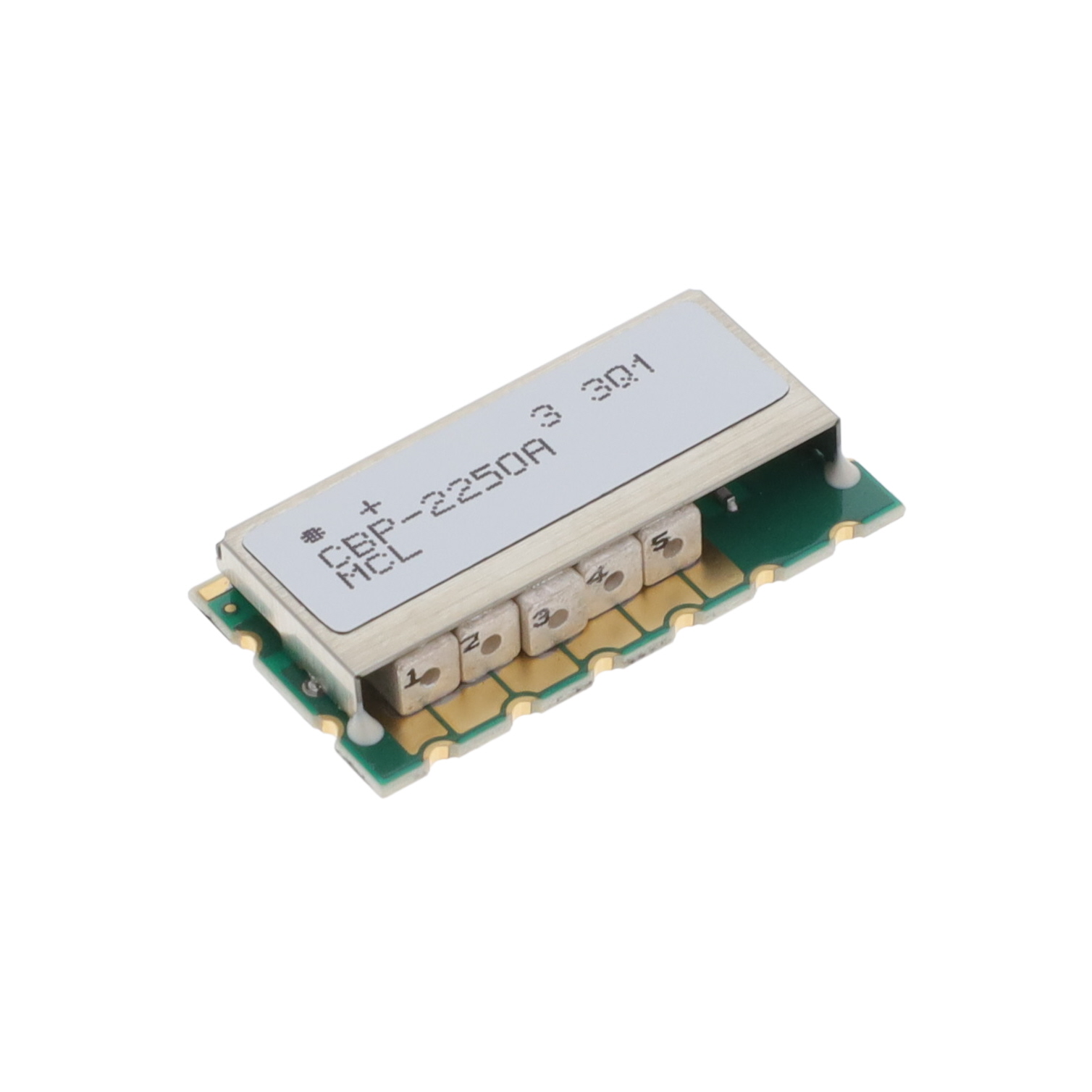

The CBP-2250A+ is a surface-mount bandpass filter from Mini-Circuits, utilizing coaxial-ceramic resonator technology. It operates with a center frequency of 2250 MHz and provides a bandwidth of 500 MHz. The device features a passband range of 2000 to 2500 MHz and maintains a characteristic impedance of 50 ohms. Designed for high performance in RF applications, it offers low insertion loss within a compact 16-SMD module package measuring 26.24mm by 13.97mm.

Feature Summary

• Utilizes coaxial-ceramic resonator construction for stable RF filtering
• Designed as a surface-mount component for automated assembly
• Provides defined bandpass characteristics with low insertion loss

Applications

• RF front-end filtering in wireless communication systems
• Signal conditioning in microwave receiver chains
• Interstage filtering in IF processing circuits

Procurement Notes

Verify the specific datasheet revision and electrical parameter tolerances against your design requirements before procurement. Confirm that the 16-SMD package dimensions align with your PCB footprint constraints. Ensure compatibility with standard surface-mount reflow soldering profiles. Check for any specific handling instructions regarding the ceramic resonator structure.

Selection Notes

Select this component when a fixed center frequency of 2250 MHz with a 500 MHz bandwidth is required. The coaxial-ceramic design suits applications needing robust performance without external tuning. Consider the physical size of the 16-SMD module relative to available board space. Evaluate if the inherent Q-factor meets the selectivity needs of your specific signal path.

Part Context

This part belongs to the CBP series of coaxial-ceramic resonator filters from Mini-Circuits. These components are engineered for operation from DC up to 6GHz. The series emphasizes low profile designs and fractional bandwidths ranging from less than 1% to 25%. The CBP-2250A+ represents a specific configuration within this broader family of RF filtering solutions.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models by comparing center frequency, bandwidth, and impedance specifications directly with the original design requirements.
