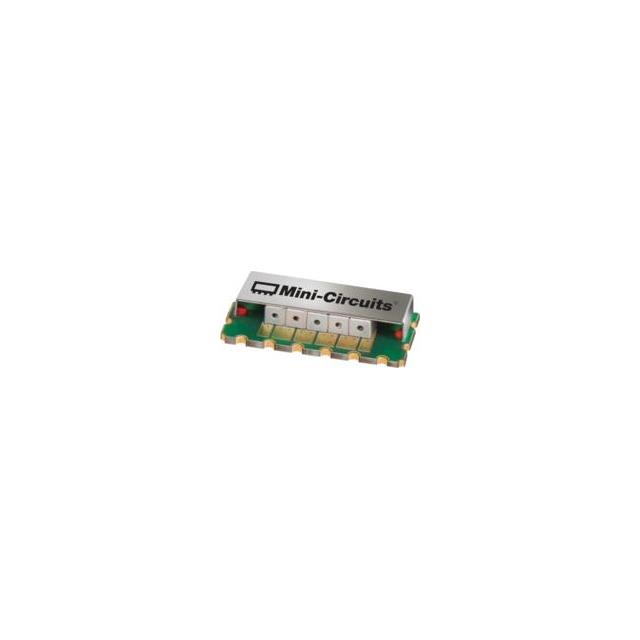

CBP-2400A+

Overview

The CBP-2400A+ is a surface-mount bandpass filter designed for RF applications. It operates within a passband of 2350 to 2450 MHz, providing insertion loss typically less than 1.5 dB. The component offers high selectivity with stopband attenuation exceeding 40 dB at frequencies outside the specified range. Constructed using robust materials, it ensures reliable performance in demanding environments. Key electrical characteristics include a center frequency of 2400 MHz and a bandwidth of 100 MHz, making it suitable for wireless communication systems requiring precise signal filtering.

Feature Summary

• Provides selective frequency filtering for RF signals
• Designed for surface-mount integration
• Ensures high stopband attenuation

Applications

• Wireless communication base stations
• RF front-end modules
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and manufacturer documentation for exact electrical tolerances and thermal specifications before procurement. Confirm that the package type matches the PCB footprint requirements. Ensure compliance with relevant regulatory standards for the intended market. Check for any recent updates to the component's pinout or material composition.

Selection Notes

Select this component when a narrow bandpass characteristic around 2.4 GHz is required. Consider the insertion loss and power handling capabilities relative to the system's signal levels. Evaluate the physical size constraints against the available board space. Compare performance metrics with alternative filters to ensure optimal system efficiency and signal integrity.

Part Context

Mini-Circuits produces a wide range of RF components including filters, amplifiers, and mixers. The CBP-2400A+ belongs to their surface-mount filter series, which emphasizes compact design and consistent performance. This product line supports various industries by providing reliable passive components for signal conditioning and interference rejection in modern electronic devices.

Replacement Considerations

Consult official Mini-Circuits substitution guides for verified equivalent part numbers. Ensure any replacement maintains identical electrical specifications and mechanical dimensions. Verify compatibility with existing PCB layouts and soldering processes before implementation.
