Product Detailed Parameters
- Description：BPF, 1.58 - 1.62 GHZ, 50
- Series：-
- Mfr：Mini-Circuits
- Package：Tray
- Frequency：1.6GHz Center
- Bandwidth：40MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：3.3dB
- Mounting Type：Surface Mount
- Package / Case：12-SMD, No Lead
- Size / Dimension：0.472" L x 0.394" W (12.00mm x 10.00mm)
- Height (Max)：0.125" (3.17mm)
Download product information
Overview

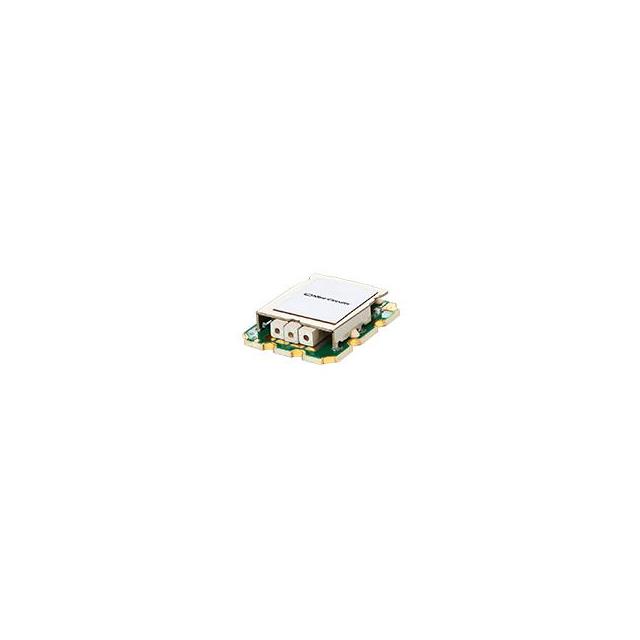

The CBP2-1600AN+ is a ceramic resonator bandpass filter from Mini-Circuits, operating within a frequency range of 1580 MHz to 1620 MHz. It features a center frequency of 1.6 GHz with a bandwidth of 40 MHz and a fractional bandwidth of 2.5%. The component maintains a 50 Ohm impedance and offers typical rejection of 60 dB. It supports excellent power handling up to 5 Watts and exhibits insertion loss characteristics suitable for RF applications.
Feature Summary
- High signal rejection capability ensuring effective interference suppression
- Robust power handling capacity for demanding RF environments
- Compact surface-mount design for efficient board integration
Applications
- Wireless communication systems requiring precise frequency selection
- RF front-end modules in mobile devices
- Test and measurement equipment needing stable filtering
Procurement Notes
Verify the specific suffix AN against official Mini-Circuits documentation to confirm connector type and package variations. Ensure compatibility with your system's impedance requirements before ordering. Cross-reference the part number with authorized distributors to validate authenticity and current availability status.
Selection Notes
Select this component when high rejection and moderate power handling are required in a compact form factor. Consider the 40 MHz bandwidth relative to your signal requirements. Evaluate thermal management needs given the 5 Watt power rating. Confirm that the SMD package aligns with your PCB layout constraints.
Part Context
This part belongs to the CBP2 series of ceramic resonator bandpass filters by Mini-Circuits. These components are designed for RF and IF signal processing applications. The series emphasizes reliability and performance in wireless infrastructure and consumer electronics markets.
Replacement Considerations
Check Mini-Circuits datasheets for direct substitutes within the CBP2 series. Verify equivalent electrical parameters such as center frequency, bandwidth, and rejection levels before substituting.
