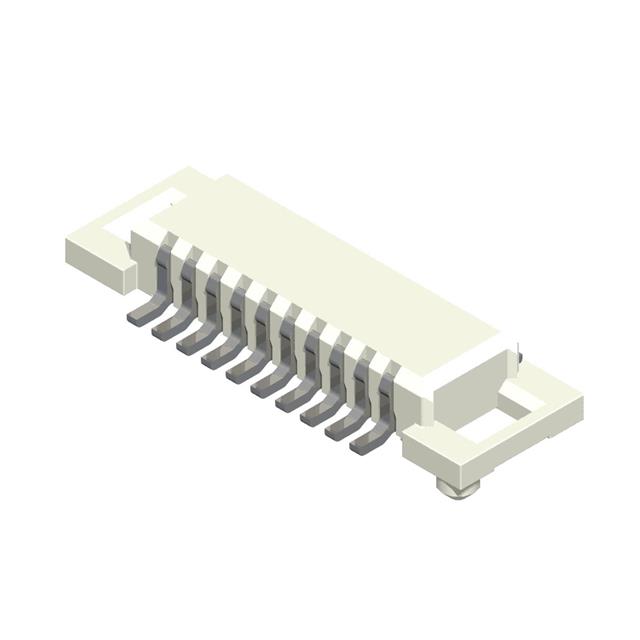

Arrays, Edge Type, Mezzanine (Board To Board) CBRC020P02001R0-NH product image

CBRC020P02001R0-NH

$0.48

Description：20 POS 0.5MM BOARD TO BOARD MALE
Series：CBRC
Mfr：Cvilux USA
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9ebd3ffd1d2b Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Cvilux USA

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CBRC020P02001R0-NH is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Cvilux USA. Its product description is 20 POS 0.5MM BOARD TO BOARD MALE. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for CBRC020P02001R0-NH

Description：20 POS 0.5MM BOARD TO BOARD MALE
Series：CBRC
Mfr：Cvilux USA
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Plug, Center Strip Contacts
Number of Positions：20
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide
Contact Finish：Gold
Contact Finish Thickness：2.00µin (0.051µm)
Mated Stacking Heights：1.5mm, 2mm
Height Above Board：0.047" (1.20mm)
