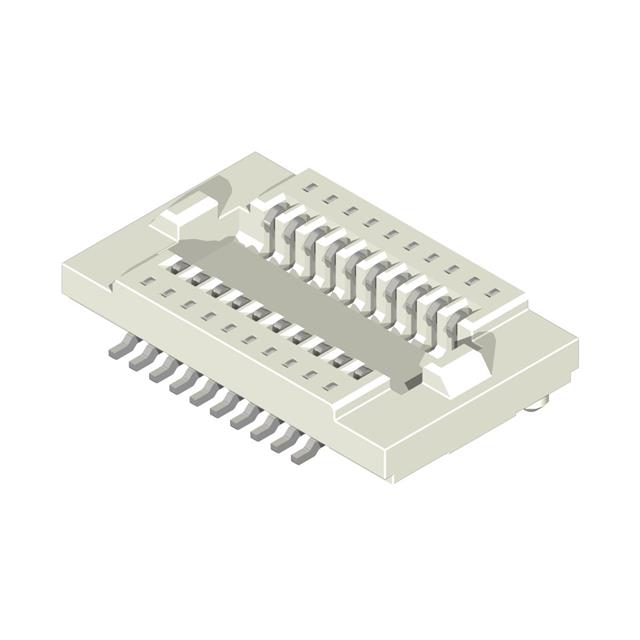

Arrays, Edge Type, Mezzanine (Board To Board) CBRC020S02001R0-NH product image

CBRC020S02001R0-NH

$0.50

Description：20 POS 0.5MM BOARD TO BOARD FEMA
Series：CBRC
Mfr：Cvilux USA
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f277e604fd91 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Cvilux USA

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CBRC020S02001R0-NH is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Cvilux USA. Its product description is 20 POS 0.5MM BOARD TO BOARD FEMA. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for CBRC020S02001R0-NH

Description：20 POS 0.5MM BOARD TO BOARD FEMA
Series：CBRC
Mfr：Cvilux USA
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Outer Shroud Contacts
Number of Positions：20
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide
Contact Finish：Gold
Contact Finish Thickness：2.00µin (0.051µm)
Mated Stacking Heights：1.5mm
Height Above Board：0.047" (1.20mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for CBRC020S02001R0-NH

CBRC020S02001R0-NH
