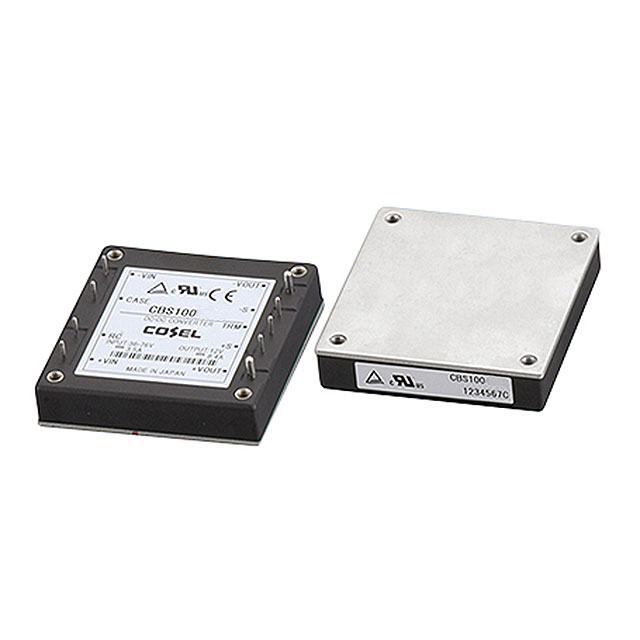

CBS1002403

CBS1002403 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER 3.3V 77W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CBS1002403

• Description：DC DC CONVERTER 3.3V 77W
• Series：CBS (100W)
• Mfr：Cosel USA, Inc.
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：23.4A
• Power (Watts)：77 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：79%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：-
• Approval Agency：-
