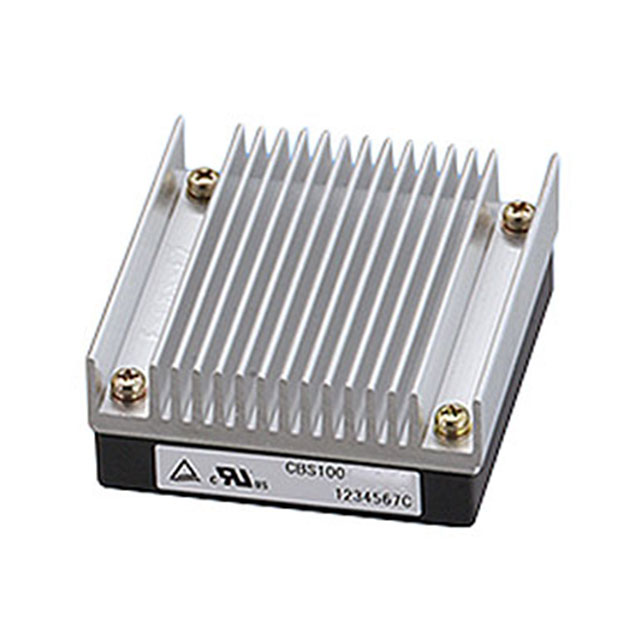

CBS1002428-F1

CBS1002428-F1 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER 28V 101W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CBS1002428-F1

• Description：DC DC CONVERTER 28V 101W
• Series：CBS (100W)
• Mfr：Cosel USA, Inc.
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：28V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3.6A
• Power (Watts)：101 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.46" L x 2.31" W x 1.04" H (62.5mm x 58.7mm x 26.5mm)
• Supplier Device Package：Half Brick
• Control Features：-
• Approval Agency：-

DC DC Converters datasheet and documents for CBS1002428-F1
