CBTEE-01-50-6000

Overview

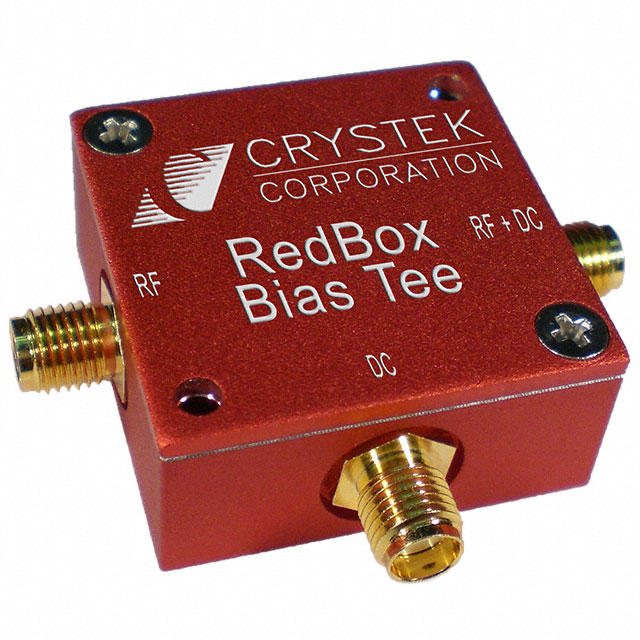

The CBTEE-01-50-6000 is a general-purpose RF bias tee manufactured by Crystek Corporation. It operates within a frequency range of 50 MHz to 6 GHz. The device supports a maximum voltage of 15 V and a maximum current of 1 A, with a power rating of 2 W. It provides high isolation, typically 35 dB at 1 GHz. The component is designed for signal conditioning applications in RF systems.

Feature Summary

• Provides DC bias to RF circuits while maintaining signal integrity across the operational bandwidth
• Delivers high isolation between DC and RF ports to prevent signal interference
• Supports standard RF system integration with defined voltage and current limits

Applications

• RF modulator biasing
• General purpose RF IC biasing
• Signal conditioning modules

Procurement Notes

Verify the specific datasheet version from Crystek Corporation or authorized distributors to confirm electrical characteristics and mechanical dimensions. Ensure that the operating conditions remain within the specified 15 V maximum voltage and 1 A maximum current limits during implementation. Cross-reference the part number CBTEE-01-50-6000 with official manufacturer documentation to validate compatibility with existing RF designs.

Selection Notes

Select this component when a wideband bias solution is required for frequencies up to 6 GHz. Consider the 35 dB typical isolation at 1 GHz for applications sensitive to DC leakage into RF paths. Evaluate the 2 W power handling capability against the thermal requirements of the target circuit. Ensure the physical package type meets the PCB layout constraints of the design.

Part Context

This bias tee belongs to Crystek Corporation's RF miscellaneous components and modules line. It serves as a passive interface element for integrating DC power with RF signals. The product is categorized under signal conditioning devices, distinct from active oscillators or amplifiers. It complements other RF passive components in communication and test equipment architectures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence carefully if considering alternatives from other manufacturers.
