CC02-20NJ-RC

Fixed Inductors Overview

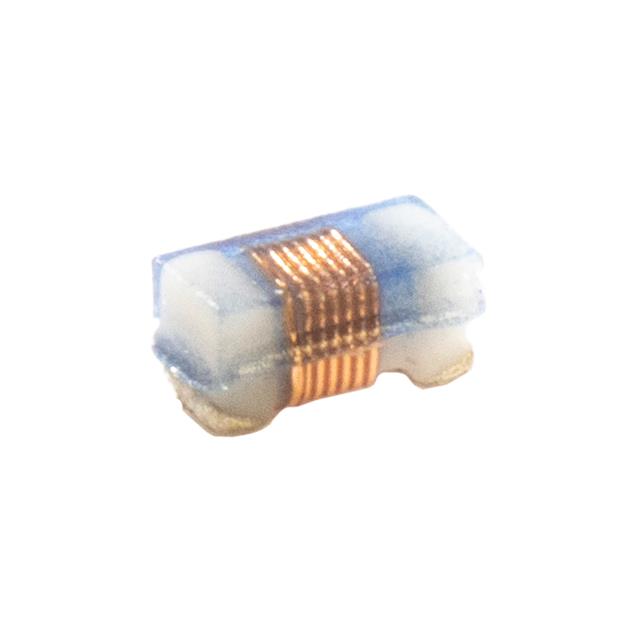

The CC02-20NJ-RC is a fixed inductor from Allied Components International, featuring an inductance of 20nH with a tolerance of ±5%. It utilizes a ceramic core construction and is designed for surface-mount applications. The component is RoHS compliant and lead-free. Specific electrical parameters such as current rating or DC resistance are not provided in the available documentation.

Fixed Inductors Feature Summary

• Ceramic core construction for stable performance
• Surface-mount package design
• RoHS compliant and lead-free manufacturing

Fixed Inductors Applications

• RF circuit filtering
• High-frequency signal processing
• Impedance matching networks

Fixed Inductors Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS compliance status with the supplier. Ensure storage conditions meet manufacturer specifications to maintain integrity. Check for lead-free certification documents upon delivery. Validate part markings against official datasheet standards.

Fixed Inductors Selection Notes

Select this component for applications requiring low inductance values around 20nH. Consider the ceramic core material for high-frequency stability. Evaluate the surface-mount form factor for PCB space constraints. Verify compatibility with reflow soldering processes used in assembly lines.

Fixed Inductors Part Context

This part belongs to the CC02 series of ceramic core chip inductors manufactured by Allied Components International. The series offers various inductance options within the same physical footprint. The CC02 designation indicates the specific case size and construction type common to this product line.

Fixed Inductors Replacement Considerations

Direct substitutes include other 20nH ±5% ceramic core chip inductors from Allied Components International such as CC02-20NK-RC. Cross-reference mechanical dimensions and terminal configurations before substitution.
