CC05-7N5J-RC

Fixed Inductors Overview

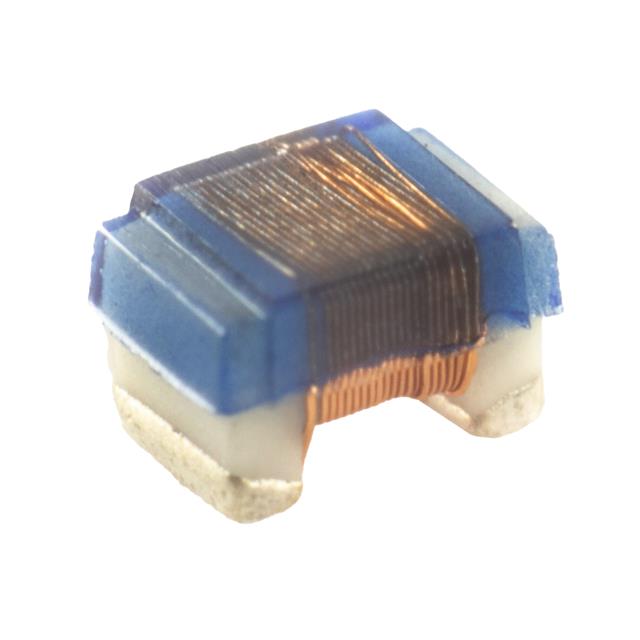

The CC05-7N5J-RC is a fixed surface-mount power inductor manufactured by Allied Components International. It features a ceramic core and wirewound construction, designed for high-frequency applications. The component provides an inductance of 7.5 nH with a tolerance of ±5%. It supports a current rating of 600 mA and exhibits a maximum DC resistance of 140 mΩ. The device is housed in a standard 0805 (2012 Metric) package footprint, suitable for automated assembly processes.

Fixed Inductors Feature Summary

• Utilizes a ceramic core material to support stable performance in high-frequency circuits
• Features wirewound construction for reliable fixed inductance characteristics
• Designed as a compact surface-mount device for efficient PCB integration

Fixed Inductors Applications

• High-frequency signal processing circuits
• RF filter networks requiring low inductance values
• DC-DC converter input/output filtering

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure the correct tolerance and packaging configuration. Confirm that the requested quantity matches the available tape and reel specifications. Cross-reference the part number with the latest datasheet to validate active status and compliance with current environmental standards before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a precise 7.5 nH inductance is required within a tight ±5% tolerance band. Ensure the application current does not exceed the 600 mA rating to maintain thermal stability. The 0805 footprint must align with the target PCB layout constraints. Verify compatibility with the operating frequency range, as the ceramic core design targets high-frequency efficiency rather than high-power energy storage.

Fixed Inductors Part Context

This component belongs to the series of fixed chip inductors produced by Allied Components International. It is categorized under nonstandard or specific metric footprints depending on the reference frame, typically corresponding to the 0805 size. The product line focuses on providing passive magnetic components for modern electronic assemblies where space efficiency and high-frequency response are critical design parameters.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model. Engineers should evaluate alternative vendors based on matching electrical parameters such as 7.5 nH inductance, 140 mΩ resistance, and 600 mA current rating. Physical footprint compatibility must be verified before considering any cross-brand substitution.
