CC1812C513R-00

Overview

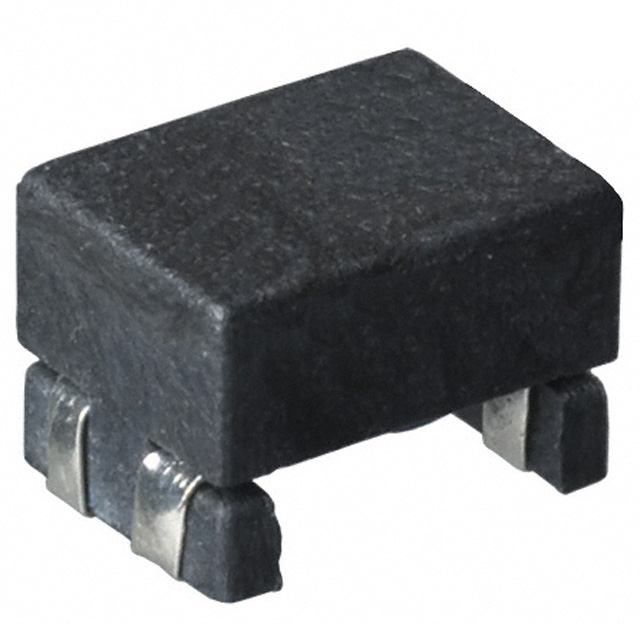

The CC1812C513R-00 is a surface-mount common mode choke from the Laird CC series. It features an inductance of 51 µH and a nominal impedance of 3.5 kOhms at 100 kHz. The component supports a maximum DC current of 200 mA with a maximum DC resistance of 500 mOhms. It operates within a temperature range of -40°C to +125°C. Physical dimensions are 5 mm length, 4 mm width, and 5.55 mm height.

Feature Summary

• Dual-line signal filtering capability for data lines
• Surface mount design for PCB integration
• High impedance performance for noise suppression

Applications

• Data line filtering
• Signal line protection
• Common mode noise suppression

Procurement Notes

Verify manufacturer details as sources list both Qnity and Laird-Signal Integrity Products. Confirm RoHS compliance status via official documentation. Ensure package type matches Reel, Cut Tape, or MouseReel requirements. Validate electrical parameters against specific datasheet revisions before procurement.

Selection Notes

Select this component for applications requiring 51 µH inductance and 200 mA current handling. Verify that the 500 mOhm DCR meets circuit loss constraints. Ensure the operating temperature range of -40°C to +125°C aligns with environmental conditions. Check physical footprint compatibility with PCB layout.

Part Context

This part belongs to the Laird CC series of common mode chokes. It is categorized under Inductors, Chokes & Coils. The product is designed for signal integrity applications. It utilizes SMD/SMT mounting technology. The series focuses on compact filtering solutions for electronic circuits.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
