CC2012A-601

Overview

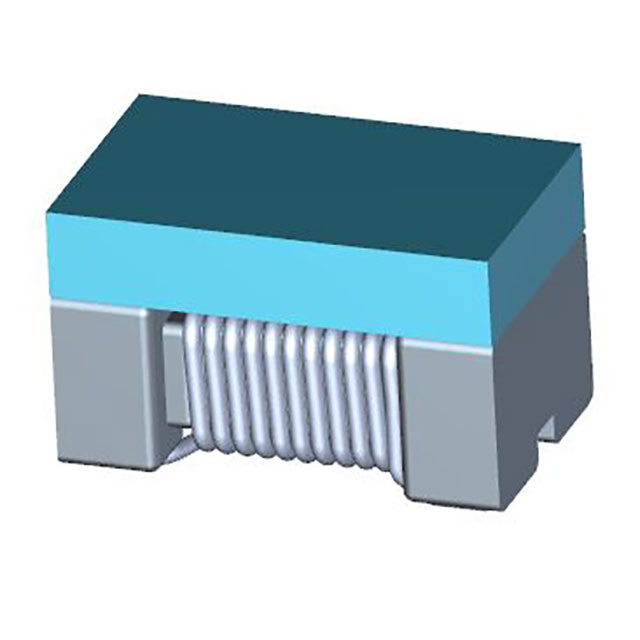

The CC2012A-601 is a two-line common mode choke manufactured by Mentech Technology USA Inc. designed for surface mount applications. It features an impedance of 600 Ohms at 100 MHz and supports a rated current of 330 mA. The component has a direct current resistance (DCR) of 350 mOhm. Its physical dimensions are 2.0 mm x 1.2 mm x 1.2 mm, suitable for compact circuit designs. The operating temperature range extends from -40°C to +85°C.

Feature Summary

• Provides common mode noise suppression for dual-line circuits
• Compact surface mount footprint for space-constrained layouts
• Low DC resistance to minimize signal loss

Applications

• High-speed data line filtering
• USB interface noise reduction
• HDMI signal integrity enhancement

Procurement Notes

Verify the manufacturer designation as Mentech Technology USA Inc. or Dongguan Mentech Optical & Magnetic Co., Ltd. when sourcing. Confirm the package type is SMD with dimensions 2.0x1.2mm. Ensure the impedance rating matches 600 Ohms @ 100 MHz and the current rating is 330mA. Check for RoHS compliance if required by your design specifications.

Selection Notes

Select this component when dual-line common mode rejection is required in a small form factor. The 330mA current rating suits low-power data lines. Consider the 350mOhm DCR for voltage drop calculations. The -40°C to +85°C range covers standard industrial and commercial environments. Compare against similar 0805-sized chokes if higher current capacity is needed.

Part Context

This part belongs to the CC series of common mode chokes from Mentech. These components are engineered for EMI suppression in digital communication interfaces. The CC2012A-601 specifically targets applications requiring moderate noise attenuation without significant power loss. It complements other passive components in signal conditioning networks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
