Product Detailed Parameters
- Description：CMC 300MA 2LN 800 OHM SMD
- Series：-
- Mfr：Mentech Technology USA Inc.
- Package：Tape & Reel (TR)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：300mA
- DC Resistance (DCR) (Max)：880mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height (Max)：0.047" (1.20mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：800 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

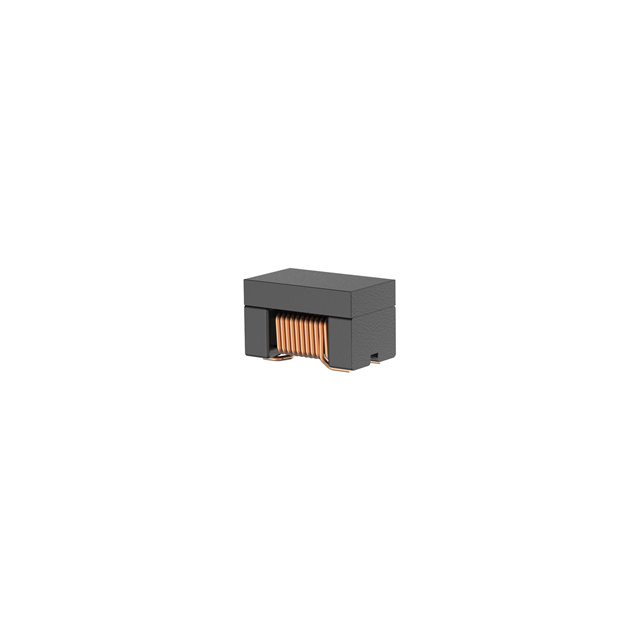

The CC2012A-801 is a two-line surface mount common mode choke manufactured by Mentech Technology USA Inc. It features an impedance of 800 Ohms at 100 MHz and a DC resistance of 880 milliohms. The component supports a rated current of 300 mA and operates within a temperature range of -40°C to +85°C. Its physical dimensions are 2.0 mm by 1.2 mm, housed in an SMD package.
Feature Summary
- Provides effective common mode noise suppression for dual-line circuits
- Compact surface mount design suitable for space-constrained applications
- Maintains stable performance across a wide operating temperature range
Applications
- Data line filtering in portable electronic devices
- Noise suppression in USB interface circuits
- Signal integrity enhancement in high-speed communication modules
Procurement Notes
Verify the manufacturer designation as Mentech Technology USA Inc. or Dongguan Mentech Optical & Magnetic during sourcing. Confirm that the specified impedance, current rating, and package dimensions match the required design specifications before procurement to ensure compatibility with the target circuit layout.
Selection Notes
Select this component when designing circuits requiring compact common mode filtering for low-current data lines. Ensure the selected part meets the specific impedance requirements at the target frequency and accommodates the available PCB real estate constraints while supporting the necessary thermal operating conditions.
Part Context
This component belongs to the series of chip inductors produced by Mentech, which focuses on magnetic components for various electronic applications. The company emphasizes stable performance in extreme environments, offering surface mount solutions designed for reliable operation in modern consumer and industrial electronics.
Replacement Considerations
Consult official distributor databases for verified substitute part numbers from Mentech or other manufacturers. Ensure any replacement matches the 800 Ohm impedance at 100 MHz, 300 mA current rating, and 2x1.2 mm footprint to maintain circuit functionality.
