CC2674P106T0RSKR

Overview

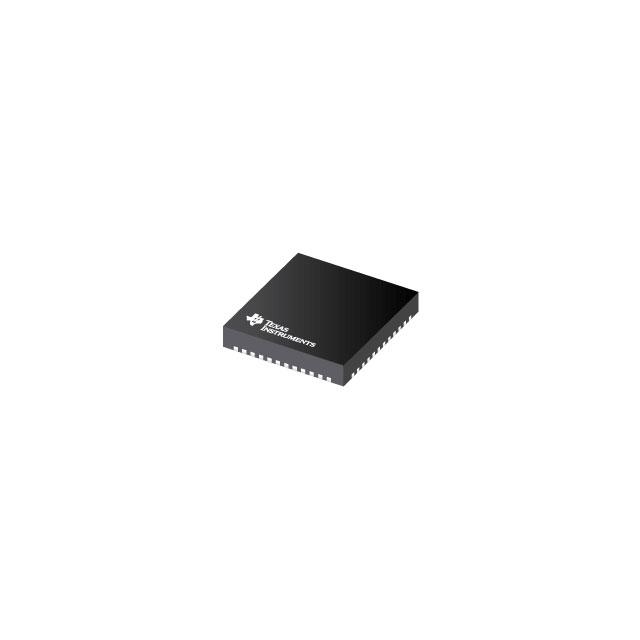

The CC2674P106T0RSKR is a SimpleLink multiprotocol wireless microcontroller featuring an ARM Cortex-M33 processor operating at 48 MHz. It integrates 1 MB of flash memory, 8 kB of cache SRAM, and 256 kB of ultra-low leakage SRAM with parity support. The device includes an integrated power amplifier capable of +20 dBm output and supports Bluetooth 5.3 Low Energy, Thread, Zigbee, and IEEE 802.15.4 protocols via the Dynamic Multiprotocol Manager. It operates on a single supply voltage between 1.8 V and 3.8 V within a temperature range of -40°C to +105°C. The component is housed in an 8 mm × 8 mm VQFN-64 package.

Feature Summary

• Supports concurrent multiprotocol operation including Bluetooth 5.3 Low Energy, Thread, Zigbee, and IEEE 802.15.4 through a dedicated Dynamic Multiprotocol Manager driver.
• Features an integrated high-power amplifier delivering up to +20 dBm output with temperature compensation for extended range applications.
• Incorporates Arm TrustZone technology for secure key storage, device ID management, and trusted execution environments alongside hardware cryptographic accelerators.
• Includes an ultra-low power sensor controller with autonomous processing capabilities to sample, store, and manage sensor data independently.

Applications

• Building automation systems such as smart locks, HVAC controllers, and environmental sensors
• Medical devices including patient monitoring patches, home healthcare monitors, and diagnostic equipment
• Industrial transportation asset tracking and factory automation control systems
• Personal electronics like smart speakers, portable remotes, and connected peripherals

Procurement Notes

Verify the specific ordering suffix RS indicates the VQFN-64 package configuration during procurement. Confirm that the required firmware SDK aligns with the SimpleLink LOWPOWER F2 Software Development Kit specifications. Ensure the design environment supports the necessary pin-to-pin compatibility requirements if migrating from other devices in the CC2674P10 family.

Selection Notes

Select this component when designs require high transmit power combined with multi-protocol flexibility in a compact form factor. The VQFN-64 package provides additional GPIO availability compared to smaller variants. Consider the integrated PA for applications needing robust signal coverage without external amplification components.

Part Context

This part belongs to the Texas Instruments SimpleLink CC2674P10 series of wireless microcontrollers. It shares software compatibility and core architecture with other devices in the portfolio, facilitating code reuse across different product lines. The RSK package variant specifically offers increased I/O count relative to the RGZ package options.

Replacement Considerations

CC2674P106T0RGZR
