Product Detailed Parameters
- Description：CMC 4.7MH 400MA 2LN 12.3KOHM SMD
- Series：CC
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：400mA
- DC Resistance (DCR) (Max)：1.3Ohm
- Voltage Rating - DC：80V
- Voltage Rating - AC：42V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.295" L x 0.217" W (7.50mm x 5.50mm)
- Height (Max)：0.150" (3.80mm)
- Package / Case：Horizontal, 4 Flat Lead
- Inductance @ Frequency：4.7 mH @ 10 kHz
- Impedance @ Frequency：12.3 kOhms @ 2 MHz
- Qualification：-
- Grade：-
Download product information
Overview

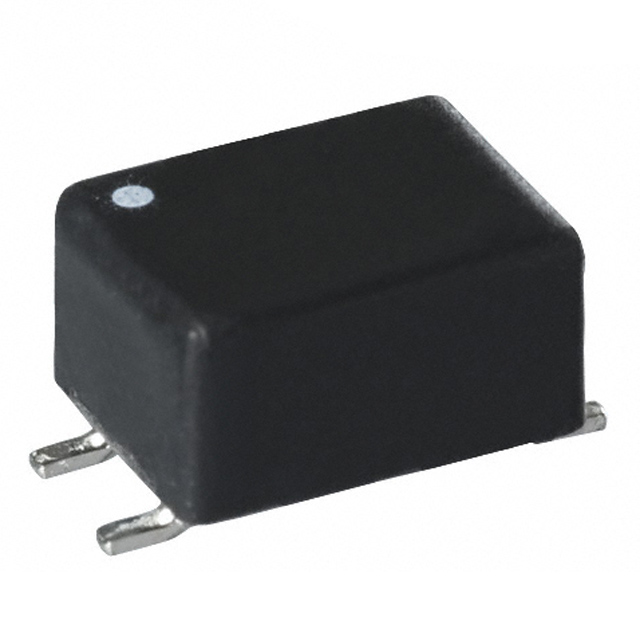

The CC2824B475R-00 is a surface-mount common mode choke manufactured by Laird-Signal Integrity Products. It features two lines and is designed for signal line filtering applications. The component exhibits an inductance of 4.7 mH at 10 kHz and provides an impedance of 12.3 kOhms at 2 MHz. It supports a maximum DC current of 400 mA with a maximum DC resistance of 550 milliohms. Rated voltages are 80V DC and 42V AC. The physical dimensions are 7.50 mm in length, 5.50 mm in width, and up to 3.80 mm in height. It operates within a temperature range of -40°C to +125°C.
Feature Summary
- Provides effective common mode noise suppression for signal lines through high impedance characteristics.
Applications
- Signal line EMI filtering
- Common mode noise reduction in electronic circuits
Procurement Notes
Verify the obsolete status of this specific part number before procurement planning. Confirm if the direct replacement CC2824B475R-10 meets all electrical and mechanical requirements for your design. Check manufacturer documentation for updated availability and lead times associated with the successor component.
Selection Notes
Select this component for applications requiring high inductance and impedance in a compact surface-mount package. Ensure the 400 mA current rating aligns with the signal line load. Consider the larger footprint compared to lower-inductance variants in the series when designing PCB layouts.
Part Context
This component belongs to the CC series of common mode chokes from Laird-Signal Integrity Products. It is part of a family of components designed for various signal integrity needs, offering different inductance and current ratings across similar form factors.
Replacement Considerations
The document identifies CC2824B475R-10 as a direct substitute for the obsolete CC2824B475R-00. Verify that the replacement maintains identical electrical parameters and mechanical dimensions for seamless integration.
