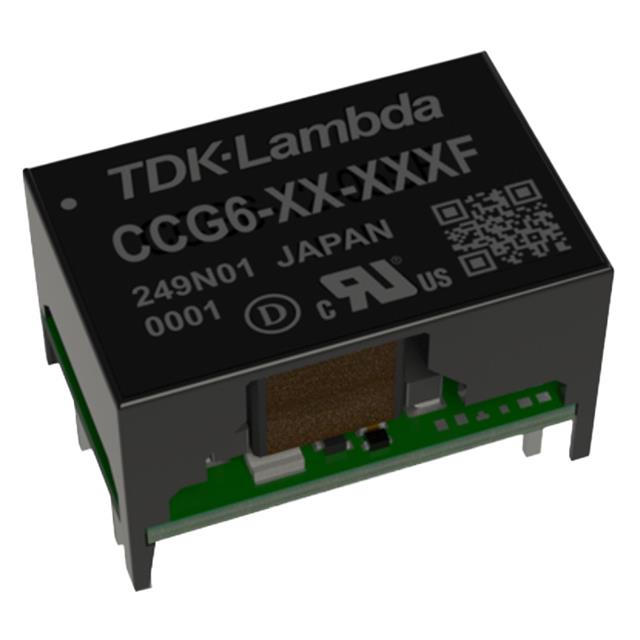

CCG6-48-05SF

CCG6-48-05SF is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 5V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CCG6-48-05SF

• Description：DC DC CONVERTER 5V 6W
• Series：CCG1R5-10 (6W)
• Mfr：TDK-Lambda
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：76V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.2A
• Power (Watts)：6 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, OCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：0.75" L x 0.49" W x 0.45" H (19.0mm x 12.4mm x 11.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：IEC, UL, CSA, EN, CE, UKCA
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CCG6-48-05SF
