CCL-CRS10Y

Overview

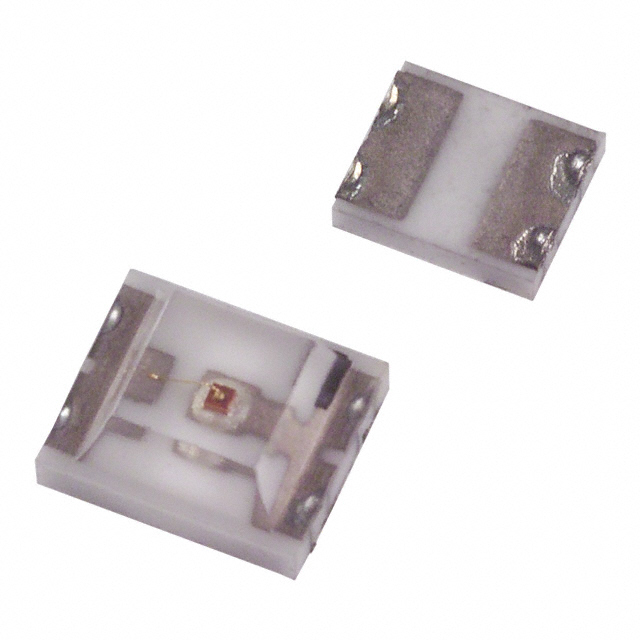

The CCL-CRS10Y is a dual-color surface-mount LED manufactured by Lumex Opto/Components Inc. It features separate yellow and green elements within a compact square package measuring 2.25 mm on each side with a total height of 1.3 mm. The device utilizes a clear lens to emit light at peak wavelengths of 585 nm for yellow and 565 nm for green. It operates with a maximum forward voltage of 2.8 V and provides a nominal luminous intensity of 6 mcd. The component offers a wide viewing angle of 180 degrees and is designed for SMD installation with a terminal pitch of 1.27 mm.

Feature Summary

• Dual-color configuration with independent yellow and green emission elements
• High reliability construction suitable for demanding environments
• Wide 180-degree viewing angle for broad visibility
• Compact square form factor with clear lens transparency

Applications

• Status indication in electronic equipment
• Panel indicators requiring distinct color coding
• Consumer electronics status displays
• Industrial control panel signaling

Procurement Notes

Verify the specific suffix against official Lumex documentation to confirm exact wavelength and binning specifications. Confirm moisture sensitivity level (MSL) handling requirements prior to soldering. Ensure the ordering code matches the required lens clarity and package dimensions. Cross-reference RoHS compliance status with current regulatory standards before finalizing procurement.

Selection Notes

Select this component when a compact dual-color indicator is required with a wide viewing angle. The 2.25 mm square package allows for dense PCB layouts compared to larger through-hole alternatives. Consider the 1.27 mm terminal pitch for compatible footprint design. Evaluate the 6 mcd intensity against ambient lighting conditions to ensure adequate visibility for the intended application.

Part Context

This part belongs to Lumex's discrete LED portfolio, specifically within their dual-color surface-mount series. It complements single-color variants by providing two distinct signals in one housing. The product line emphasizes custom optical solutions and high-reliability components for industrial and commercial applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify pinout compatibility and thermal characteristics if considering alternative manufacturers' dual-color LEDs.
