CCL-LX45GT

Overview

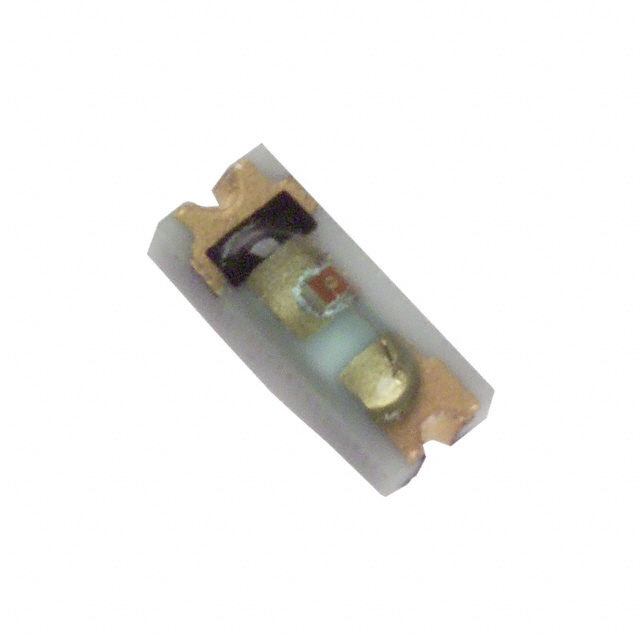

The CCL-LX45GT is a single-color green LED from Lumex Opto/Components Inc., designed for surface-mount applications. It features a transparent lens with an oval shape and dimensions of 2 mm x 1 mm. The component emits light at a peak wavelength of 565 nm with a luminous intensity of 7 mcd. Electrical characteristics include a forward current of 20 mA, a forward voltage of 2.2 V, and a power rating of 130 mW. It utilizes a GaP chip material and is housed in a 1305 (3412 metric) package.

Feature Summary

• Surface-mount design compatible with SMD/SMT assembly processes
• Transparent oval lens structure for clear visual indication
• Green emission spectrum centered at 565 nm

Applications

• Electronic device status indicators
• Panel board illumination
• General-purpose signal indication

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with Lumex or authorized distributors before integration. Confirm that the 1305 package footprint matches the target PCB layout. Ensure handling procedures account for surface-mount sensitivity during reflow soldering processes to maintain component integrity.

Selection Notes

Select this component when a low-profile green indicator is required for space-constrained designs. The 2.2 V forward voltage aligns with standard logic-level driving circuits. Consider the 7 mcd intensity sufficient for direct visibility without additional optics. Verify thermal management requirements against the 130 mW power rating for continuous operation scenarios.

Part Context

This part belongs to Lumex's discrete LED indicator series, specifically within the green LED category. It complements other variants like the CCL-LX45YT (yellow) and shares the same 1305 physical footprint, allowing for potential color flexibility in manufacturing while maintaining consistent mechanical mounting standards across product lines.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
