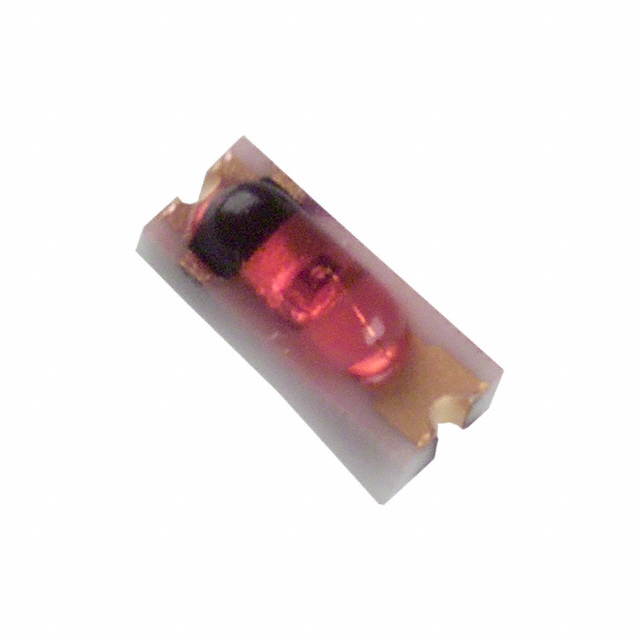

CCL-LX45IT

Description：LED RED CLEAR SMD
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cf4e0edef923 Category: LED Indication - Discrete Brand: Lumex Opto/Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RED CLEAR SMD
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Clear
Millicandela Rating：7.2mcd
Lens Style：Oval with Domed Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：180°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：635nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：SMD
Size / Dimension：3.20mm L x 1.27mm W
Height (Max)：1.20mm
Grade：-
Qualification：-

Download product information

CCL-LX45IT

Overview

The CCL-LX45IT is a single-color LED indicator manufactured by Lumex Opto/Components Inc., designed for surface-mount technology (SMD/SMT) applications. It features a yellow transparent lens with a dome shape and clear transparency, emitting light at a peak wavelength of 585 nm. The component operates with a forward current of 20 mA and a typical forward voltage of 2.3 V, resulting in a power rating of 130 mW. It provides a luminous intensity of 7 mcd and is housed in a 1305 (3412 metric) package with lens dimensions of 1.99 mm.

Feature Summary

Surface-mount design compatible with SMD/SMT assembly processes
Yellow transparent dome-shaped lens for clear optical transmission
Single-level monochromatic emission configuration

Applications

Panel indicators
LED circuit board indicators
General status indication

Procurement Notes

Verify the specific ordering suffix against official Lumex documentation to confirm exact electrical parameters and lens characteristics. Ensure compatibility with RoHS and REACH standards as specified in the manufacturer's compliance statements. Cross-reference the Mouser part number 696-ccl-lx45yt if available, noting potential discrepancies between IT and YT suffixes regarding color or intensity specifications before finalizing procurement.

Selection Notes

Select this component for applications requiring a low-profile surface-mount yellow LED with a 585 nm peak wavelength. Consider the 1305 package size for PCB space constraints and verify that the 7 mcd intensity meets visibility requirements. Confirm thermal management capabilities align with the 130 mW power rating and ensure the 2.3 V forward voltage matches the driving circuit design.

Part Context

The CCL-LX45IT belongs to Lumex's line of single-color LEDs, specifically within the yellow LED category. It shares family characteristics with other variants like the CCL-LX45GT, differing primarily in lens color and emission wavelength. This series supports standard surface-mount installation methods, providing a compact solution for electronic device signaling needs.
