CCL-LX45SRT

Overview

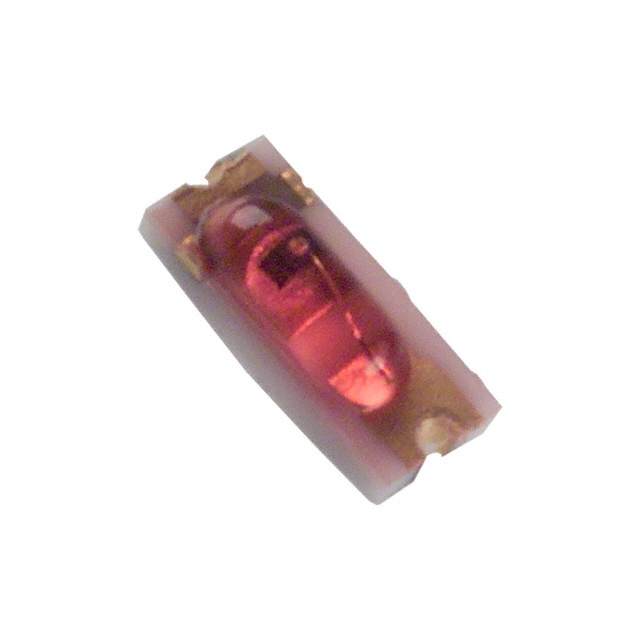

The CCL-LX45SRT is a surface-mount single-color LED manufactured by Lumex Opto/Components Inc. It features a red transparent lens with a peak wavelength of 660 nm and emits an optical intensity of 8 mcd. The component utilizes a 2-SMD package configuration, designed for standard surface mount technology (SMT) assembly processes. Electrical characteristics include a forward voltage of approximately 2.3 V at a test current of 20 mA, with a maximum power dissipation rating of 130 mW. The device complies with RoHS standards and is lead-free, ensuring environmental safety for electronic manufacturing applications requiring reliable visual indication.

Feature Summary

• Surface-mount design compatible with automated SMT assembly lines
• Red transparent lens housing for clear visual status indication
• Lead-free construction compliant with RoHS environmental directives

Applications

• Visual status indication in consumer electronics devices
• Panel indicator lights for industrial control equipment
• Power supply status signaling in computer hardware

Procurement Notes

Verify the specific ordering suffix to confirm the exact binning class for luminous intensity and wavelength consistency. Ensure the procurement channel provides valid RoHS compliance documentation and material declarations. Confirm that the supplier source matches the original manufacturer specifications to avoid counterfeit components. Check for any specific handling requirements related to moisture sensitivity levels during storage and reflow soldering processes.

Selection Notes

Select this component when a compact surface-mount red indicator is required for space-constrained PCB layouts. Consider the 660 nm peak wavelength for optimal visibility in standard ambient lighting conditions. Evaluate the 2-SMD footprint against available board space and routing constraints. Compare the 8 mcd intensity against application visibility requirements to ensure adequate signal clarity without excessive power consumption.

Part Context

This part belongs to Lumex's standard discrete LED portfolio, focusing on high-reliability visual indicators. The CCL series typically offers various color options and package styles to support diverse electronic design needs. As a single-color device, it serves as a fundamental building block for status monitoring circuits across multiple industry sectors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and thermal characteristics before considering alternative generic red SMD LEDs from other manufacturers.
