Product Detailed Parameters
- Description：LED YELLOW CLEAR SMD
- Series：-
- Mfr：Lumex Opto/Components Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Yellow
- Configuration：Standard
- Lens Color：Yellow
- Lens Transparency：Clear
- Millicandela Rating：7mcd
- Lens Style：Oval with Domed Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2.3V
- Current - Test：20mA
- Viewing Angle：180°
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：585nm
- Features：-
- Package / Case：2-SMD, No Lead
- Supplier Device Package：SMD
- Size / Dimension：3.20mm L x 1.27mm W
- Height (Max)：1.20mm
- Grade：-
- Qualification：-
Download product information
Overview

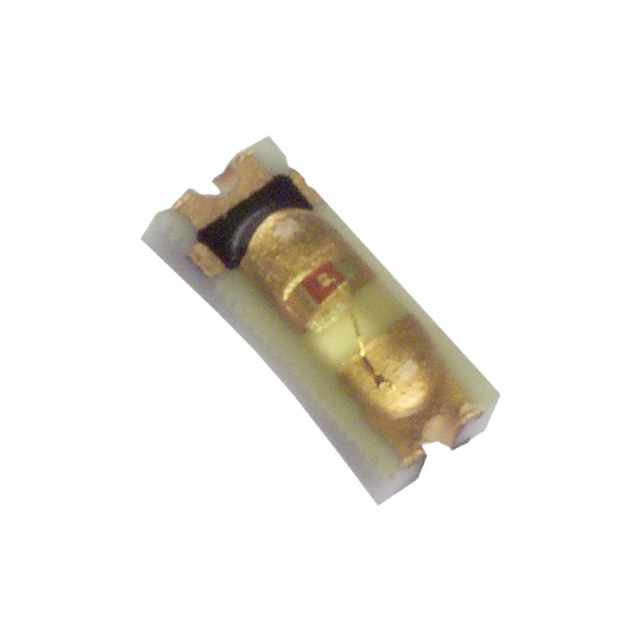

The CCL-LX45YT is a single-color yellow LED indicator manufactured by Lumex Opto/Components Inc. It features a transparent lens with a dome shape and emits light at a peak wavelength of 585 nm. The component has a typical forward voltage of 2.3 V and a rated power of 130 mW. It delivers an optical intensity of 7 mcd when driven at a forward current of 20 mA. The device utilizes a surface-mount design within the 1305 (3412 metric) package, with lens dimensions of 1.99 mm.
Feature Summary
- Surface-mount construction for automated assembly integration
- Transparent dome-shaped lens for clear visual indication
- Yellow emission spectrum optimized for visibility
Applications
- Electronic equipment status indicators
- Control panel signal lights
- Power supply unit monitoring
Procurement Notes
Verify the specific manufacturer part number against official Lumex documentation to ensure authenticity. Confirm that the component meets required environmental standards such as RoHS and REACH compliance before procurement. Check datasheet specifications for operating temperature ranges and moisture sensitivity levels to ensure compatibility with assembly processes.
Selection Notes
Select this component based on its specific yellow wavelength and surface-mount package requirements. Ensure the circuit design accommodates the 2.3 V forward voltage drop and 20 mA drive current. Verify that the 1305 footprint matches the PCB layout constraints and that the 7 mcd intensity meets visibility needs for the intended application environment.
Part Context
This component belongs to Lumex's line of single-color surface-mount LEDs. It is designed for general-purpose indication in compact electronic assemblies. The 1305 package size allows for dense mounting on printed circuit boards while maintaining reliable electrical connections through standard SMT reflow processes.
Replacement Considerations
Direct substitutes must match the 1305 package, 585 nm wavelength, and similar electrical characteristics. Verify pinout compatibility and thermal management requirements when considering alternative manufacturers or updated series from Lumex.
