CCS2ESTLG

Overview

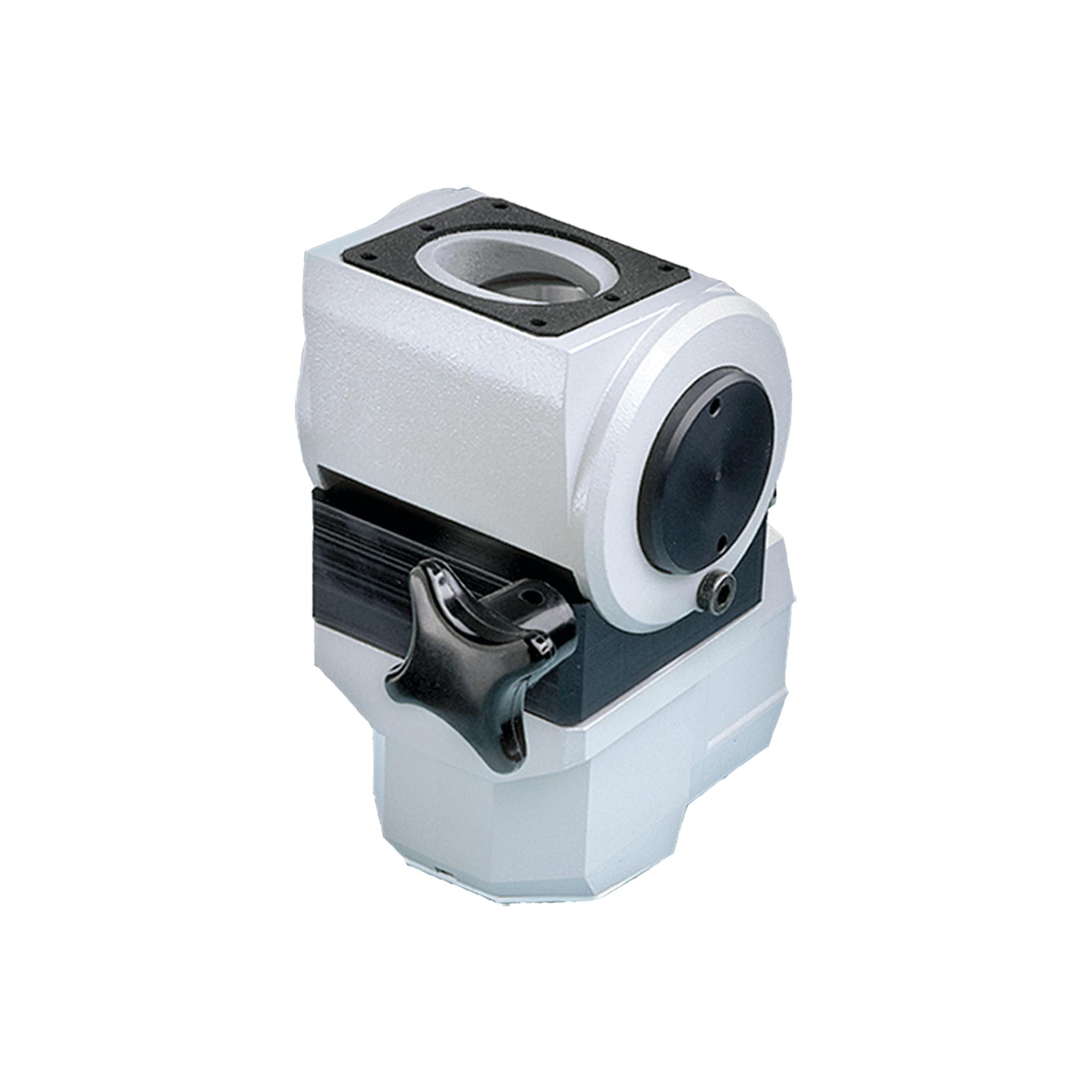

The CCS2ESTLG is a Compact Series 2 swivel tilt mount manufactured by Hoffman Enclosures, Inc. Constructed from aluminum and finished in light gray (RAL7035), this component serves as a support arm elbow designed to interface between pendant arms and HMI enclosures. It provides a 90-degree swivel range and a 30-degree tilt capability, accommodating mounting interfaces of 45x60mm dimensions.

Feature Summary

• Provides both swivel and tilt adjustment options for machine operators
• Designed to mount between pendant arms and HMI enclosures
• Constructed from aluminum material with a light gray finish

Applications

• Mounting Human-Machine Interface (HMI) enclosures
• Connecting pendant arms to enclosure systems
• Industrial operator interface positioning

Procurement Notes

Verify the specific application requirements against the 45x60mm mounting interface specification before procurement. Confirm that the aluminum construction and light gray finish align with environmental and aesthetic standards. Ensure compatibility with existing pendant arm systems to guarantee proper mechanical integration and operational stability.

Selection Notes

Select this component when adjustable viewing angles are required for HMI installations. The 90-degree swivel and 30-degree tilt ranges offer flexibility for operator positioning. Verify that the load capacity supports the intended HMI enclosure weight and that the 45x60mm interface matches the connected hardware.

Part Context

This part belongs to the Hoffman Compact Series 2 line of rack accessories. It functions specifically as a mechanical adapter rather than an enclosure itself. The design focuses on ergonomic adjustability for industrial control panels, allowing precise orientation of display units within automated machinery setups.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
