Product Detailed Parameters
- Description：DIODE SCHOTTKY 60V 2A 1206
- Series：-
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io)：2A
- Voltage - Forward (Vf) (Max) @ If：700 mV @ 2 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 60 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：Chip, Concave Terminals
- Supplier Device Package：1206
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview

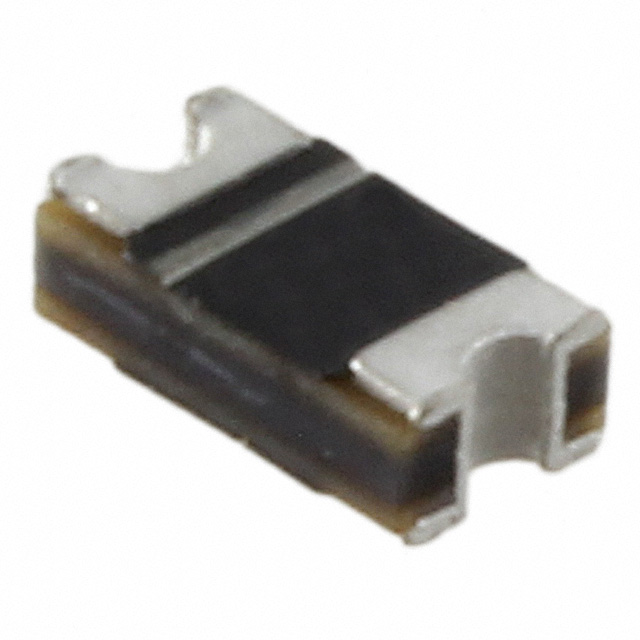

The Bourns CD1206-B260 is a surface mount Schottky barrier rectifier diode housed in a compact 1206 (3216 metric) package. It provides a maximum average forward rectified current of 2 A and a repetitive peak reverse voltage of 60 V. The device features a maximum instantaneous forward voltage of 0.85 V at 2 A and a DC reverse current of 0.5 mA at rated blocking voltage. It supports a peak forward surge current of 40 A and operates within a junction temperature range of -55 °C to +125 °C.
Feature Summary
- Lead-free construction compliant with RoHS standards
- Low profile molded plastic configuration for PCB real estate savings
- Flat design minimizes roll-away during standard pick-and-place assembly
- UL 94V-0 classification for fire safety
Applications
- High frequency switching power supplies
- Inverters
- Free wheeling circuits
- Polarity protection
Procurement Notes
Verify the specific part number against official manufacturer documentation before procurement. Confirm that the required electrical parameters, such as the 60 V reverse voltage rating and 2 A forward current capability, align with your circuit design requirements. Ensure compliance with relevant industry standards and verify actual device performance in your specific application environment prior to finalizing orders.
Selection Notes
Select this component when space constraints require a small surface mount footprint like the 1206 package. It is suitable for applications needing a single Schottky rectifier with a 60 V reverse voltage rating and 2 A continuous current capacity. Consider its low forward voltage drop for efficiency and its compatibility with standard SMT manufacturing processes for portable communications and computing equipment.
Part Context
This component belongs to the Bourns CD1206-B series of surface mount Schottky rectifier diodes. The series includes variants with different reverse voltage ratings, specifically 20 V, 40 V, 60 V, and 100 V, all sharing the same 1206 package and 2 A current handling capability. These devices are designed to meet the miniaturization demands of modern electronics while providing reliable rectification.
Replacement Considerations
Compatible substitutes within the same family include the CD1206-B220 (20 V), CD1206-B240 (40 V), and CD1206-B2100 (100 V). When replacing, ensure the alternative part meets or exceeds the required reverse voltage and forward current specifications for the specific application.
