Product Detailed Parameters
- Description：DIODE STANDARD 400V 3A 2SMD
- Series：-
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：400 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：1.25 V @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：5 µA @ 400 V
- Capacitance @ Vr, F：19pF @ 4V, 1MHz
- Mounting Type：Surface Mount

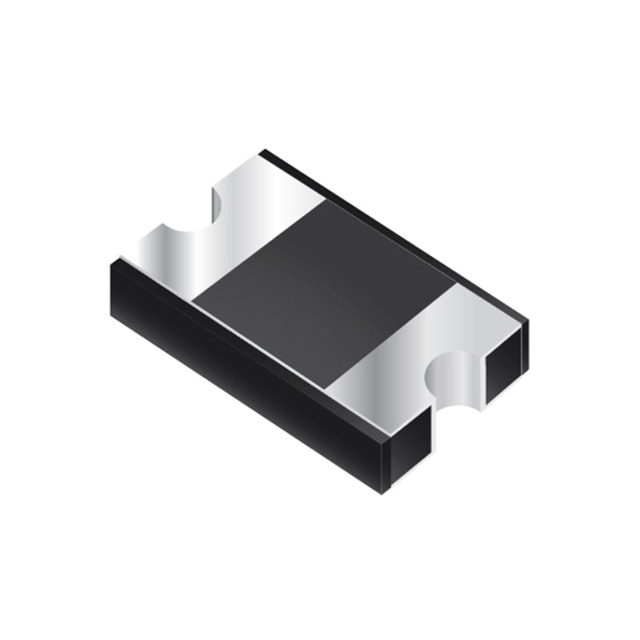

- Package / Case：2-SMD, No Lead
- Supplier Device Package：2-SMD
- Operating Temperature - Junction：-65°C ~ 175°C
- Grade：-
- Qualification：-
Download product information
Overview
The CD214B-FS3G is a fast response rectifier chip diode manufactured by Bourns Inc. It features a maximum average forward current of 3 A and a maximum repetitive peak reverse voltage of 400 V. The device operates within a junction temperature range of -65 to +175 °C and supports a peak forward surge current of 90 A. Electrical characteristics include a typical instantaneous forward voltage of 1.25 V at 3 A, a reverse recovery time of 35 ns, and a typical junction capacitance of 19 pF. The component utilizes a DO-214AA (SMB) surface mount package.
Feature Summary
- Fast response rectification with a typical reverse recovery time of 35 ns
- Glass passivated construction for enhanced reliability
- RoHS compliant and lead-free manufacturing
- UL 94V-0 classification for flame retardancy
Applications
- Switch Mode Power Supplies
- Portable equipment batteries
- High frequency rectification
- DC/DC Converters
- Telecommunications
Procurement Notes
Verify the specific part number against the manufacturer's official datasheet to confirm electrical ratings and package dimensions. Ensure compliance with RoHS directives and UL requirements relevant to the target application environment. Confirm availability status directly with authorized distributors or the manufacturer, as supply conditions may change without notice.
Selection Notes
Select this component for applications requiring high-speed rectification in compact designs. The 400 V rating suits intermediate voltage levels, while the 3 A current capacity supports moderate power loads. Consider the low thermal resistance and wide operating temperature range for environments with significant heat generation or extreme ambient conditions.
Part Context
This component belongs to the CD214B-FS3x series of fast response rectifier chip diodes from Bourns. The series offers various voltage ratings including 200 V, 600 V, and 800 V variants, all sharing the same SMB package format and 3 A current capability. These diodes are designed to meet the miniaturization demands of modern portable electronics and computing devices.
Replacement Considerations
Compatible substitutes within the same series include CD214B-FS3D (200 V), CD214B-FS3J (600 V), and CD214B-FS3K (800 V). Verify that the alternative voltage rating meets the circuit's peak reverse voltage requirements before substitution.
