Product Detailed Parameters
- Description：DIODE STANDARD 600V 3A 2SMD
- Series：-
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：1.7 V @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：5 µA @ 600 V
- Capacitance @ Vr, F：19pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：2-SMD, No Lead
- Supplier Device Package：2-SMD
- Operating Temperature - Junction：-65°C ~ 175°C
- Grade：-
- Qualification：-
Download product information
Overview

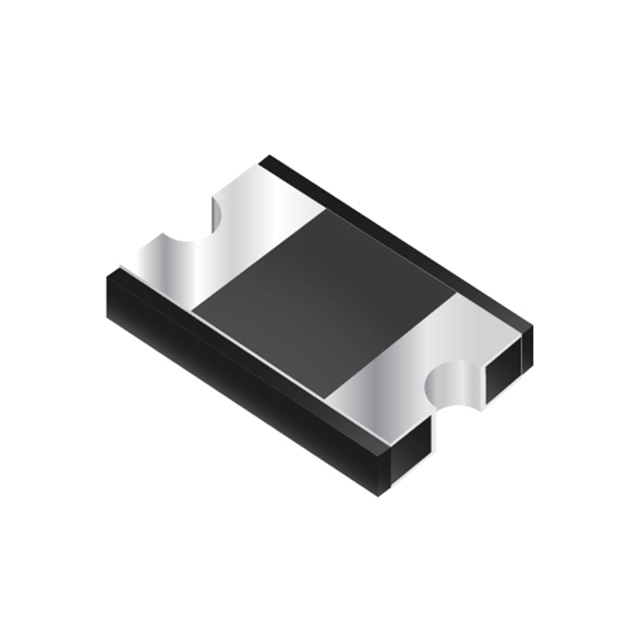

The Bourns CD214C-FS3J is a glass passivated fast response rectifier chip diode housed in a compact DO-214AB (SMC) compatible package. It provides a maximum average forward current of 3 A and a maximum repetitive peak reverse voltage of 600 V. Key electrical characteristics include a maximum instantaneous forward voltage of 1.7 V at 3 A, a reverse recovery time of 35 ns, and a typical junction capacitance of 19 pF. The device supports an operating junction temperature range from -65 °C to +175 °C.
Feature Summary
- Glass passivation for enhanced stability
- Low profile surface mount design
- High efficiency with low power loss
- UL 94V-0 classification
Applications
- Switch mode power supplies
- Portable equipment batteries
- High frequency rectification
- DC/DC converters
- Telecommunications
Procurement Notes
Verify the specific part number against the manufacturer's latest datasheet to confirm current specifications and compliance status. Ensure that the ordering suffix matches the required voltage rating and package type. Check for any regional regulatory requirements or environmental certifications relevant to your manufacturing process before finalizing procurement.
Selection Notes
Select this component when a high-current rectifier with fast switching capabilities is required in a compact SMC footprint. The 600 V rating suits applications requiring higher reverse voltage blocking compared to lower voltage variants. Consider the thermal resistance and derating curves for proper heat dissipation in dense PCB layouts.
Part Context
This part belongs to the CD214C-FS3x series of fast response rectifier chip diodes from Bourns Inc. The series offers choices of 200 V, 400 V, and 600 V repetitive peak reverse voltages while maintaining a consistent 3 A average forward current rating across all variants.
Replacement Considerations
Compatible substitutes within the same series include CD214C-FS3D (200 V) and CD214C-FS3G (400 V), provided the circuit voltage requirements align with their respective ratings.
