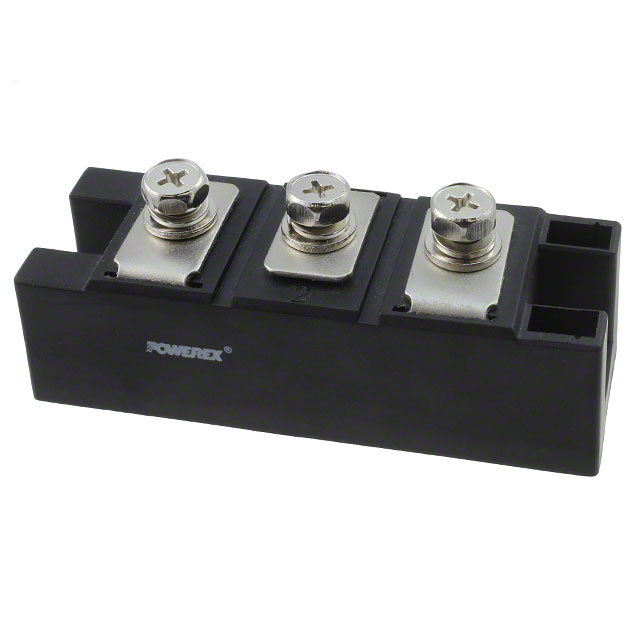

CD611616C is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Powerex Inc.. Its product description is DIODE MOD GP 1600V 160A MOD. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for CD611616C
- Description：DIODE MOD GP 1600V 160A MOD
- Series：-
- Mfr：Powerex Inc.
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1600 V
- Current - Average Rectified (Io) (per Diode)：160A
- Voltage - Forward (Vf) (Max) @ If：-
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：12 mA @ 1600 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Screw Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for CD611616C
Diode Arrays Overview
The Powerex CD611616C is a dual diode isolated POW-R-BLOK module rated for 160 Amperes and 1600 Volts. It features electrically isolated heatsinking, compression bonded construction, and low thermal impedance. The device supports an operating temperature range of -40 to +150 °C and includes UL recognition (E78240). Key electrical parameters include a repetitive peak reverse blocking voltage up to 1800 V, average forward current of 160 A at 99°C case temperature, and a peak on-state voltage of 1.56 V at 480 A.
Diode Arrays Feature Summary
- Electrically isolated heatsinking for easy mounting with other components on a common heatsink
- Compression bonded construction ensuring structural integrity
- Low thermal impedance designed to improve current capability
- UL recognized (E78240) for safety compliance
Diode Arrays Applications
- Power Supplies
- Bridge Circuits
- AC & DC Motor Drives
- Battery Supplies
- Large IGBT Circuit Front Ends
- Welders
Diode Arrays Procurement Notes
Verify the specific part number against official Powerex documentation to confirm voltage and current ratings match design requirements. Ensure mounting torque specifications are strictly followed during installation to maintain performance and reliability. Confirm RoHS compliance status if required by project specifications.
Diode Arrays Selection Notes
Select this module for applications requiring rectification and isolated packaging. Consider the thermal resistance values and maximum case temperatures when designing the cooling system. Evaluate the surge current capabilities and operating temperature range against the expected load conditions.
Diode Arrays Part Context
This component belongs to the POW-R-BLOK family of single and dual diode isolated modules from Powerex. These modules are engineered for high-power rectification applications where electrical isolation between the circuit and the heatsink is necessary. The series offers various voltage and current configurations to suit diverse industrial needs.
Diode Arrays Replacement Considerations
Consult official Powerex documentation for verified substitute part numbers within the same product family or equivalent offerings from other manufacturers.
