CD74FCT541M2075

Overview

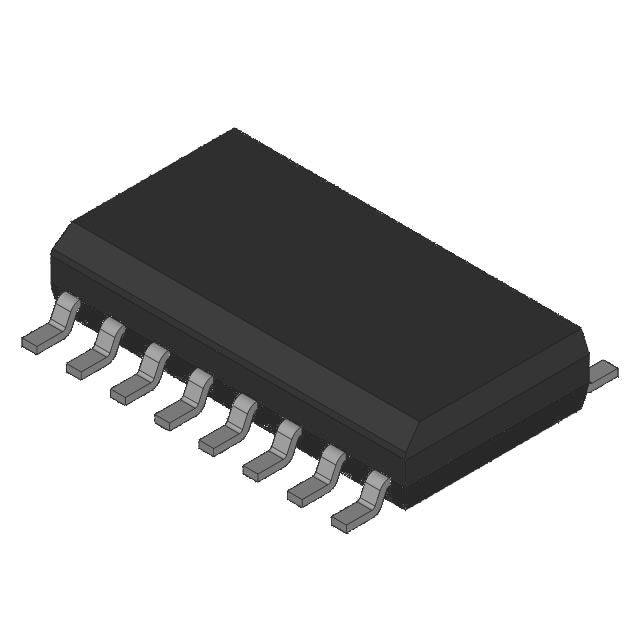

The CD74FCT541M2075 is an octal buffer and line driver manufactured by Harris Corporation, belonging to the FCT logic series. It features a single functional unit with eight bits per element and non-inverting true output polarity. The device utilizes CMOS technology and provides three-state outputs for effective bus management. It is housed in a surface-mount package designed for high-speed digital applications requiring reliable signal transmission and isolation.

Feature Summary

• Octal configuration providing eight independent data paths within a single functional unit
• Three-state output capability enabling efficient bus-oriented communication architectures
• Non-inverting true output polarity ensuring direct signal transmission without phase reversal
• CMOS construction supporting high-speed operation characteristics typical of the FCT series

Applications

• Bus-oriented memory and system control circuits
• Clock drivers and buffered clock distribution networks
• High-speed data transceivers for digital communication interfaces
• Control lines driving multiple loads in parallel configurations

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the part matches the specific Harris Corporation manufacturing origin. Check datasheet revisions for any updates regarding electrical characteristics or pinout definitions. Ensure compliance with relevant environmental regulations applicable to your region before integration into final products.

Selection Notes

Select this component when designing systems requiring octal buffering with three-state control capabilities. Consider the FCT series performance profile for applications needing faster switching speeds compared to standard TTL equivalents. Evaluate power supply requirements and thermal management needs based on the CMOS technology used. Ensure compatibility with existing logic families and voltage levels in the target design architecture.

Part Context

This component belongs to the broader family of Harris Corporation logic integrated circuits, specifically the FCT series known for high-speed CMOS performance. It serves as a fundamental building block for digital logic designs requiring signal amplification and isolation. The device represents a transition era in semiconductor manufacturing where Harris Corporation was a significant provider of logic solutions before industry consolidations.

Replacement Considerations

Potential substitutes include CY74FCT541ATQCT from Texas Instruments, which offers similar octal buffer functionality with three-state outputs. Verify pin compatibility and electrical specifications against original datasheets before substitution. Other compatible parts may exist within the same logic family from different manufacturers, but rigorous testing is required to ensure functional equivalence.
