Product Detailed Parameters
- Description：DIODE SCHOTTKY 30V 100MA SOD723
- Series：-
- Mfr：Comchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io)：100mA
- Voltage - Forward (Vf) (Max) @ If：350 mV @ 10 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：10 µA @ 10 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：SOD-723
- Supplier Device Package：SOD-723
- Operating Temperature - Junction：125°C (Max)
- Grade：-
- Qualification：-
Download product information
Overview

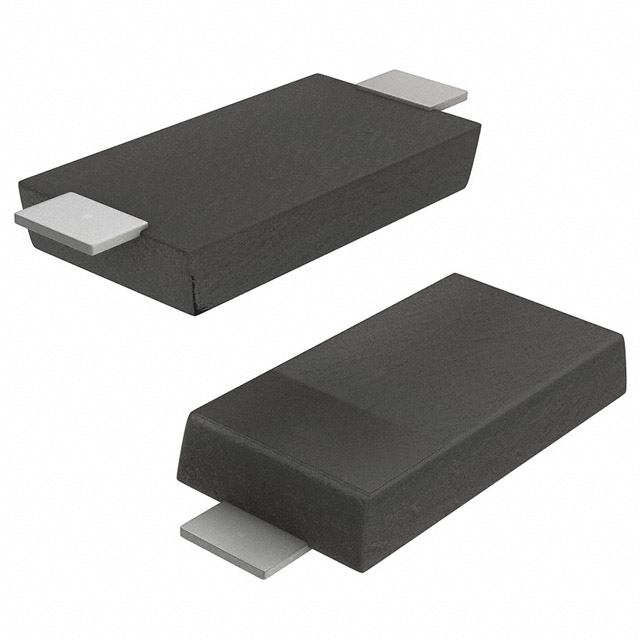

The CDBP0130L-G is a surface-mount Schottky barrier diode manufactured by Comchip Technology. It features a molded plastic SOD-723 case with terminals solderable per MIL-STD-750 Method 2026. The device has a maximum DC reverse voltage of 30V and a mean rectifying current of 100mA. Peak forward surge current is rated at 1A, with a junction temperature range up to 125°C. Electrical characteristics include a maximum forward voltage of 0.35V at 10mA and a maximum reverse current of 10μA at 10V.
Feature Summary
- Utilizes silicon epitaxial planar chip technology for high reliability
- Features low forward voltage drop characteristics
- Designed for small surface mounting applications
Applications
- General purpose rectification in electronic circuits
- Free wheeling diode applications
- Polarity protection circuits
Procurement Notes
Verify the specific RoHS compliance status associated with the “-G” suffix designation against official manufacturer documentation prior to procurement. Confirm that the SOD-723 package dimensions align with PCB footprint requirements. Ensure sourcing channels provide authentic components from Comchip Technology or authorized distributors to guarantee electrical parameter integrity and manufacturing quality standards.
Selection Notes
Select this component for designs requiring a compact surface-mount Schottky diode with a 30V reverse voltage rating. The 100mA continuous current capability suits low-power signal rectification and polarity protection tasks. Consider the SOD-723 package size constraints when determining board layout compatibility. Evaluate thermal management needs based on the specified junction temperature limits during operation.
Part Context
This part belongs to the Comchip Technology SMD Schottky Barrier Diode series. It shares functional similarities with other devices in the lineup but is distinguished by its specific 30V rating and 100mA current capacity within the SOD-723 package format. The series emphasizes high reliability and RoHS compliance for modern electronics manufacturing.
Replacement Considerations
Compatible substitutes must match the 30V reverse voltage, 100mA forward current, and SOD-723 package dimensions. Verify equivalent forward voltage and reverse leakage specifications to ensure circuit performance parity.
