CDRH6D28NP-6R0NC

$0.53

Description：FIXED IND 6UH 2.25A 35 MOHM SMD
Series：CDRH6D28
Mfr：Sumida America Components Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9a9925aee54a Category: Fixed Inductors Brand: Sumida America Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CDRH6D28NP-6R0NC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is FIXED IND 6UH 2.25A 35 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CDRH6D28NP-6R0NC

Description：FIXED IND 6UH 2.25A 35 MOHM SMD
Series：CDRH6D28
Mfr：Sumida America Components Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Material - Core：Ferrite
Inductance：6 µH
Tolerance：±30%
Current Rating (Amps)：2.25 A
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：35mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 100°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max)：0.118" (3.00mm)
Features：-

Fixed Inductors datasheet and documents for CDRH6D28NP-6R0NC

CDRH6D28NP-6R0NC

Fixed Inductors Overview

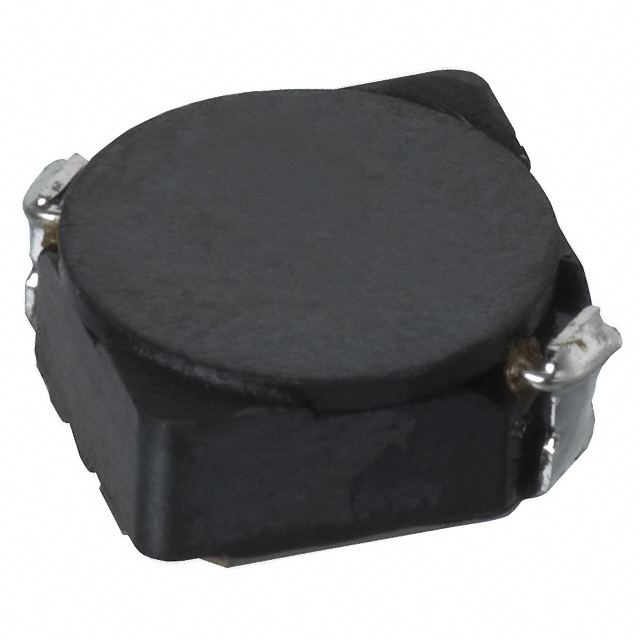

The Sumida CDRH6D28NP-6R0NC is a surface-mount power inductor from the CDRH6D28 series, featuring a shielded wirewound ferrite core. It provides an inductance of 6 µH with a tolerance of ±30%. The component supports a maximum DC current of 2.25 A and has a maximum DC resistance of 35 mΩ. Measuring 7 mm x 7 mm x 3 mm, it operates within a temperature range of -40°C to +100°C and is tested at 100 kHz.

Fixed Inductors Feature Summary

Shielded construction minimizes electromagnetic interference
Wirewound ferrite core design for stable performance
Surface-mount package suitable for automated assembly

Fixed Inductors Applications

Power supply circuits
DC-DC converters
General power electronics

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official Sumida documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical characteristics. Check RoHS compliance status through certified datasheets or certificates of conformity prior to integration into production lines.

Fixed Inductors Selection Notes

Select this component when a 6 µH inductance value is required with a 2.25 A current rating. Ensure the PCB footprint accommodates the 7 mm x 7 mm dimensions. Verify that the operating environment stays within the specified -40°C to +100°C temperature range for reliable operation.

Fixed Inductors Part Context

This component belongs to the CDRH6D28 series of shielded power inductors manufactured by Sumida America Components Inc. The series offers various inductance values within a standardized 7 mm x 7 mm footprint, designed for high-current applications requiring compact size and low profile.
