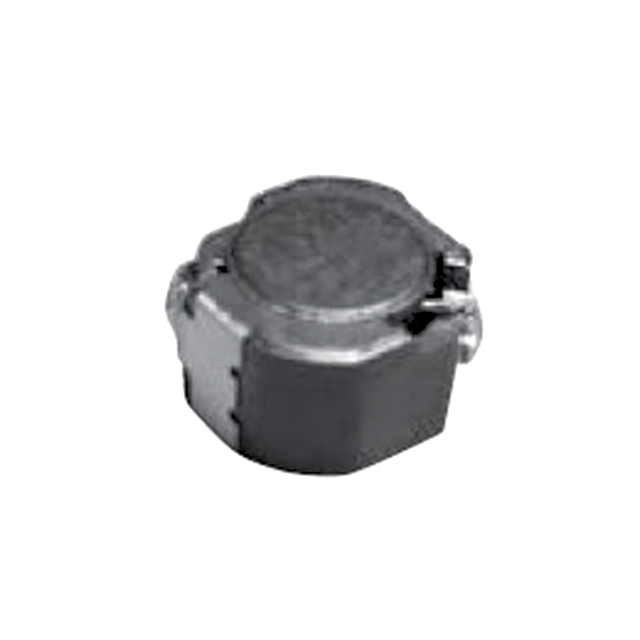

CDRH70D45BT150NP-330MC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is FIXED IND 33UH 2.2A 97 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CDRH70D45BT150NP-330MC
- Description：FIXED IND 33UH 2.2A 97 MOHM SMD
- Series：CDRH70D45B/T150
- Mfr：Sumida America Components Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Ferrite
- Inductance：33 µH
- Tolerance：±20%
- Current Rating (Amps)：2.2 A
- Current - Saturation (Isat)：1.6A
- Shielding：Shielded
- DC Resistance (DCR)：97mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 150°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.303" L x 0.287" W (7.70mm x 7.30mm)
- Height - Seated (Max)：0.189" (4.80mm)
- Features：-
Fixed Inductors datasheet and documents for CDRH70D45BT150NP-330MC
Fixed Inductors Overview
The Sumida CDRH70D45BT150NP-330MC is a surface-mount power inductor designed for automotive applications. It features a ferrite core and magnetic shielding to minimize electromagnetic interference. The component has an inductance of 33 µH with a tolerance of ±20%. It supports a maximum DC current of 2.2 A and exhibits a maximum DC resistance of 97 mΩ. The device operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification.
Fixed Inductors Feature Summary
- Magnetic shielding structure reduces electromagnetic interference
- AEC-Q200 qualified for automotive reliability standards
- Ferrite core construction for stable performance
Fixed Inductors Applications
- Automotive electronic circuits
- Power supply filtering
- DC-DC converter stages
Fixed Inductors Procurement Notes
Verify the specific suffix '330MC' against official Sumida documentation to confirm the 33 µH inductance value, as suffixes define electrical characteristics. Ensure the procurement channel provides valid traceability for AEC-Q200 certified components intended for automotive use. Cross-reference the manufacturer part number with authorized distributor lists to avoid counterfeit parts.
Fixed Inductors Selection Notes
Select this component when designing automotive-grade power systems requiring shielded inductors with high current handling capabilities. The 33 µH value and 2.2 A rating suit specific switching frequency requirements. Consider the physical dimensions and thermal performance relative to the PCB layout constraints in compact automotive modules.
Fixed Inductors Part Context
This part belongs to the CDRH70D45BT150NP series from Sumida America Components Inc., which focuses on SMD power inductors. The series utilizes ferrite cores and offers various inductance options defined by suffix codes. It is engineered for robust operation in demanding environments, distinguishing it from general-purpose industrial inductors through its automotive certification.
Fixed Inductors Replacement Considerations
Consult official Sumida substitution guides for verified equivalents. Generic cross-references may not match the AEC-Q200 qualification or specific shielding characteristics required for automotive compliance.
