CE83A0350

Overview

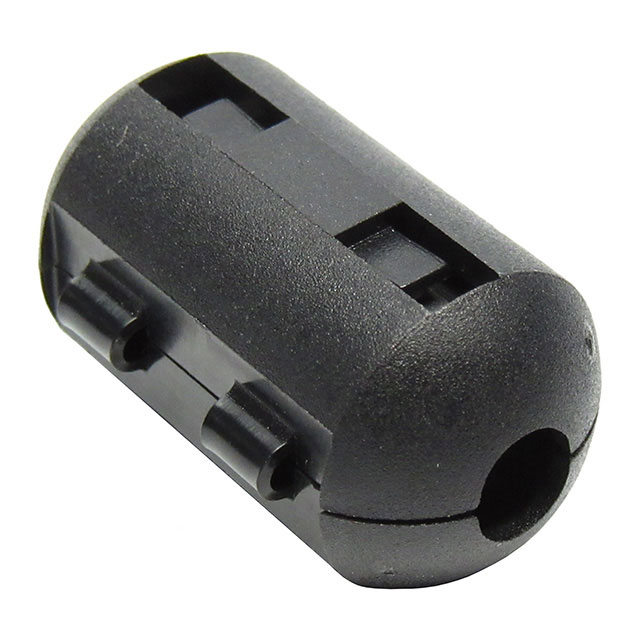

The CE83A0350 is a hinged ferrite clamp filter manufactured by Leader Tech Inc. It features a flat design with an impedance of 110 Ohms at 30MHz. The component has an inner diameter of 5.41mm (0.213 inches) and an outer width of 2.760 inches (70.10mm). The core material is designated as type 33. Physical dimensions include an outer height of 0.701 inches (17.80mm), an inner height of 0.059 inches (1.50mm), and a length of 1.311 inches (33.30mm).

Feature Summary

• Hinged clamp design allows for installation around existing cables without disconnection.
• Provides electromagnetic interference suppression through high impedance characteristics.
• Flat profile construction facilitates mounting in constrained electronic spaces.

Applications

• Suppression of noise on data and power cables in electronic enclosures.
• EMI mitigation for circuit boards and electronic assemblies.
• Cable filtering in communication equipment requiring hinged ferrite solutions.

Procurement Notes

Verify current availability status as the component may be obsolete or discontinued. Confirm that the 110 Ohm impedance specification meets system requirements. Ensure mechanical fit within the target enclosure space. Check for RoHS compliance documentation if required by project standards. Contact manufacturer for alternate material options if supply is limited.

Selection Notes

Select this component when a hinged ferrite solution is required for post-assembly cable filtering. The 110 Ohm impedance at 30MHz suits specific frequency ranges. The 5.41mm inner diameter determines maximum cable compatibility. Consider the physical footprint of 2.760 inches width for spatial planning. Evaluate the flat design against other ferrite core shapes for integration needs.

Part Context

Leader Tech Inc. specializes in EMI shielding products for circuit boards and electronic enclosures. The CE83A0350 belongs to the category of clamp filters, which are ferrite cores equipped with a case. These components are designed to suppress electromagnetic interference on cables within electronic systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. The component status is noted as obsolete in some sources. Consult the manufacturer for alternate material options or equivalent specifications.
