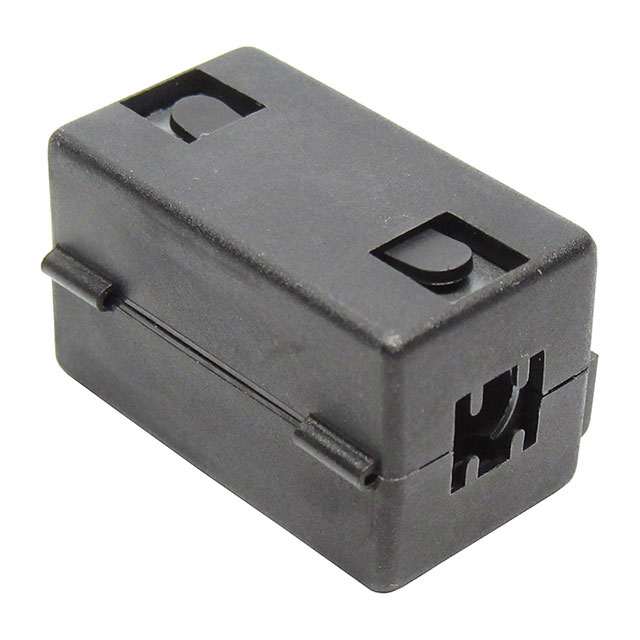

CE83A2025

Description：FERRITE CORE 275OHM HINGED 6.5MM
Series：-
Mfr：Leader Tech Inc.
Package：Bulk

SKU:f443ffff4b56 Category: Cable Ferrites Brand: Leader Tech Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE 275OHM HINGED 6.5MM
Series：-
Mfr：Leader Tech Inc.
Package：Bulk
Type：Round
Design：Hinged (Snap On)
Impedance @ Frequency：275Ohm @ 100MHz
Material：CE83
Inner Dimension：0.256" Dia (6.50mm)
Outer Dimension：0.689" Dia (17.50mm)
Ratings：-
Mounting Type：Free Hanging
Length：1.280" (32.51mm)

Download product information

CE83A2025

Overview

The CE83A2025 is a hinged ferrite core manufactured by Leader Tech Inc., designed for EMI suppression applications. It features a snap-on design allowing installation around existing cables without disconnection. The component operates with an impedance of 275 Ohms at 100 MHz and utilizes CE83A material composition. Physical dimensions include an inner diameter of 6.50 mm, an outer diameter of 17.50 mm, and a length of 32.51 mm. It is classified as a free-hanging cable ferrite suitable for passive electronic filtering.

Feature Summary

Hinged snap-on construction enables rapid installation on live cables
Free-hanging design provides flexible mounting orientation
CE83A material composition ensures effective high-frequency noise attenuation

Applications

Cable EMI suppression in electronic assemblies
Noise filtering for signal and power lines
Retroactive shielding of existing wire harnesses

Procurement Notes

Verify the specific manufacturer part number against official datasheets to confirm compatibility. Check RoHS compliance status and current production lifecycle stage before procurement. Ensure physical dimensions match the target cable diameter requirements. Confirm availability through authorized distributors as this item may be discontinued.

Selection Notes

Select this component when retrofitting shielding onto existing cables is required. The hinged mechanism eliminates the need to disconnect wires during installation. Verify that the cable diameter falls within the 6.50 mm inner diameter specification. Consider the 275 Ohm impedance rating for the target frequency range of interference mitigation.

Part Context

This ferrite core belongs to the Leader Tech Inc. line of passive EMI suppression components. It serves as a solution for radiated and conducted noise reduction in electronic systems. The product is categorized under cable ferrites and is distinct from surface-mount or through-hole shielded enclosures.
