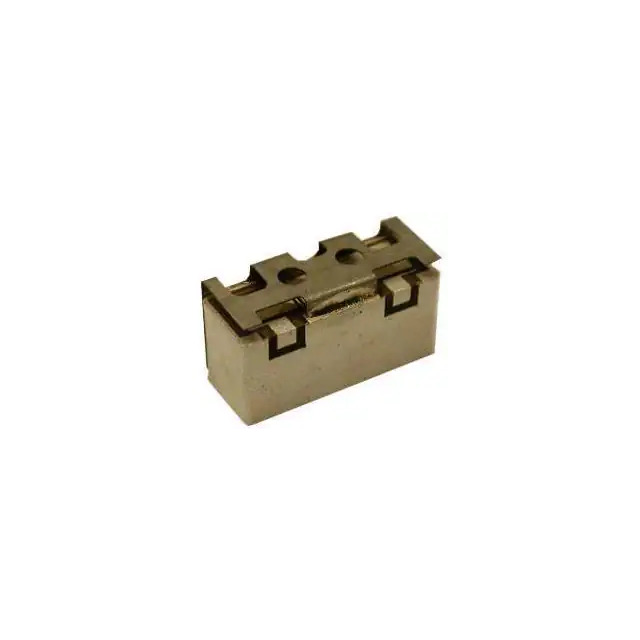

CER0188A

Description：CER FILTER 3.425GHZ BAND PASS
Series：-
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Tape & Reel (TR)

SKU:64247f4fe23e Category: Ceramic Filters Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CER FILTER 3.425GHZ BAND PASS
Series：-
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Tape & Reel (TR)
Frequency：3.425GHz Center
Impedance：-
Bandwidth：50 MHz
Insertion Loss：0.95dB
Filter Type：Band Pass
Mounting Type：Surface Mount
Package / Case：Monoblock, 2 PC Pad
Size / Dimension：0.463" L x 0.272" W (11.75mm x 6.90mm)
Height (Max)：0.181" (4.60mm)

Download product information

CER0188A

Overview

The CER0188A is a ceramic bandpass filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It operates at a center frequency of 3.425 GHz with a bandwidth of 50 MHz. The component utilizes a monoblock package configuration featuring two printed circuit board pads for surface mount installation. This design supports high-frequency signal filtering applications requiring precise frequency selection within the specified operational range.

Feature Summary

Provides bandpass filtering functionality centered at 3.425 GHz
Utilizes ceramic construction for stable RF performance
Designed for surface mount technology integration

Applications

Wireless communication systems operating at 3.425 GHz
RF signal processing circuits requiring bandpass characteristics
Electronic devices utilizing surface mount ceramic filters

Procurement Notes

Verify the manufacturer part number CER0188A against official Tusonix or CTS documentation to ensure authenticity. Confirm that the required specifications match the 3.425 GHz center frequency and 50 MHz bandwidth parameters. Check for RoHS compliance status and moisture sensitivity level requirements relevant to your assembly process before finalizing procurement orders.

Selection Notes

Select this component when a fixed center frequency of 3.425 GHz is required for bandpass filtering. Ensure the PCB layout accommodates the monoblock package dimensions and two-pad configuration. Consider the thermal and mechanical properties of ceramic materials if the application involves harsh environmental conditions or specific mounting constraints.

Part Context

This component belongs to the family of ceramic filters produced by Tusonix under CTS Electronic Components. These filters are engineered for radio frequency applications where compact size and reliable performance are essential. The product line includes various models tailored to different frequency bands and bandwidth requirements for diverse electronic systems.
