CF-155.520MBB-T

Oscillators Overview

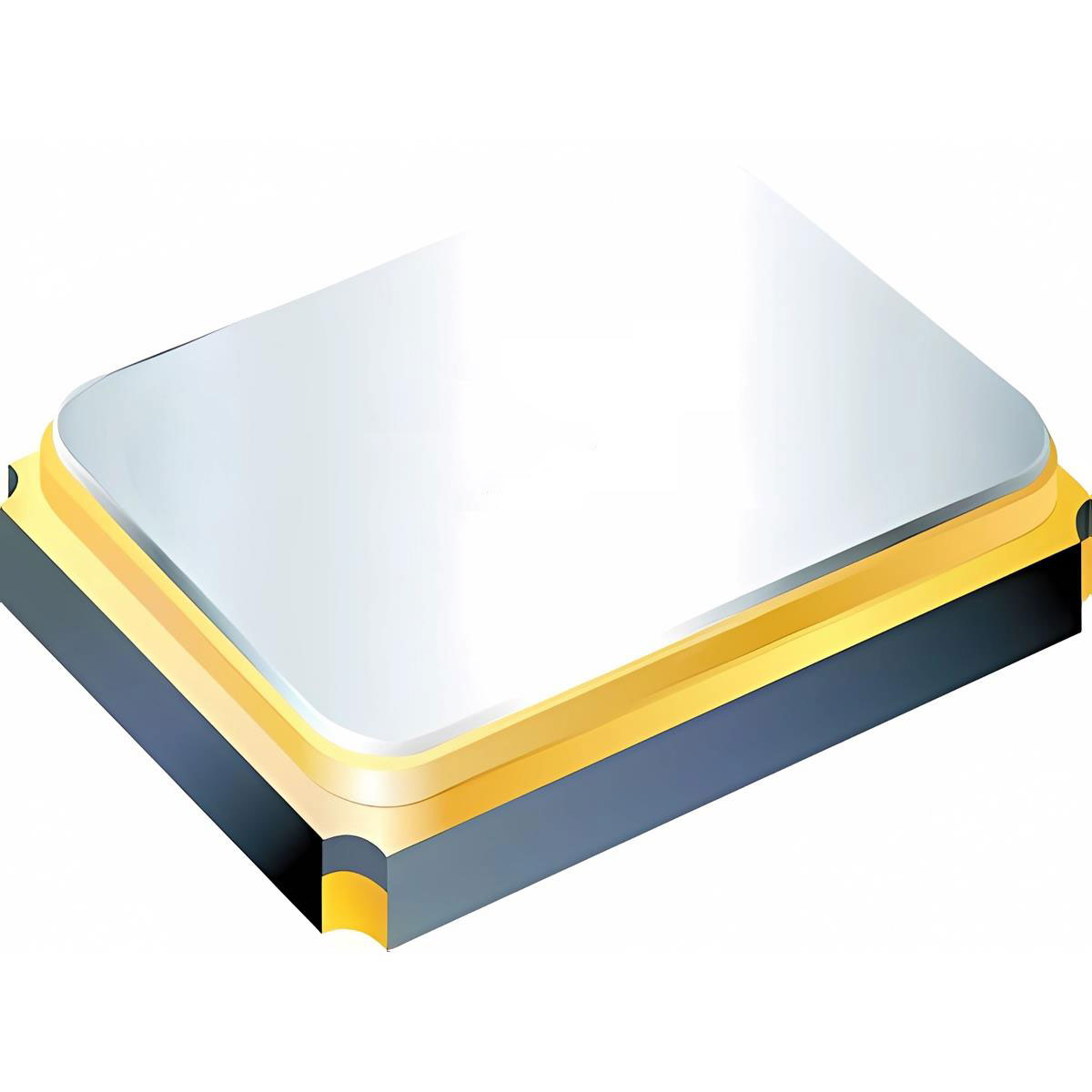

The CF-155.520MBB-T is a standard crystal oscillator (XO) manufactured by TXC Corporation, operating at a fixed frequency of 155.52 MHz. It utilizes LVDS output format for signal transmission and functions within a supply voltage range of 3.3 V. The component features a frequency stability of ±50 ppm and supports an enable/disable control function. It is housed in a compact 6-SMD, no lead package with dimensions of 5.0 mm x 3.2 mm and a height of 1.2 mm. The device is rated for an operating temperature range of -10°C to +70°C.

Oscillators Feature Summary

• Provides precise timing signals via LVDS output interface
• Includes enable and disable control functionality
• Utilizes a compact surface-mount package design

Oscillators Applications

• High-speed data communication systems
• Network infrastructure equipment
• Telecommunications base stations

Oscillators Procurement Notes

Verify the specific operating temperature range and package dimensions against the official datasheet before integration. Confirm that the LVDS output compatibility matches the receiving circuit requirements. Ensure the supply voltage tolerance aligns with the system power rails. Check for any specific handling precautions related to the surface-mount technology used in this component series.

Oscillators Selection Notes

Select this model when a stable 155.52 MHz clock source with low-jitter LVDS outputs is required. Consider the ±50 ppm stability specification for applications sensitive to frequency drift. Evaluate the -10°C to +70°C temperature range against environmental conditions. Compare the physical footprint against available PCB space constraints.

Oscillators Part Context

This component belongs to the CF series of standard oscillators from TXC Corporation. It is designed as a direct replacement for other 155.52 MHz oscillators requiring LVDS outputs. The series focuses on providing reliable clock sources for digital systems where signal integrity and timing precision are critical parameters.

Oscillators Replacement Considerations

Direct substitutes must match the 155.52 MHz frequency, LVDS output type, and 3.3V supply voltage. Verify pinout compatibility if replacing with different manufacturers' parts. Ensure the replacement maintains the same or better frequency stability and temperature range specifications.
