CF12JB130K

Overview

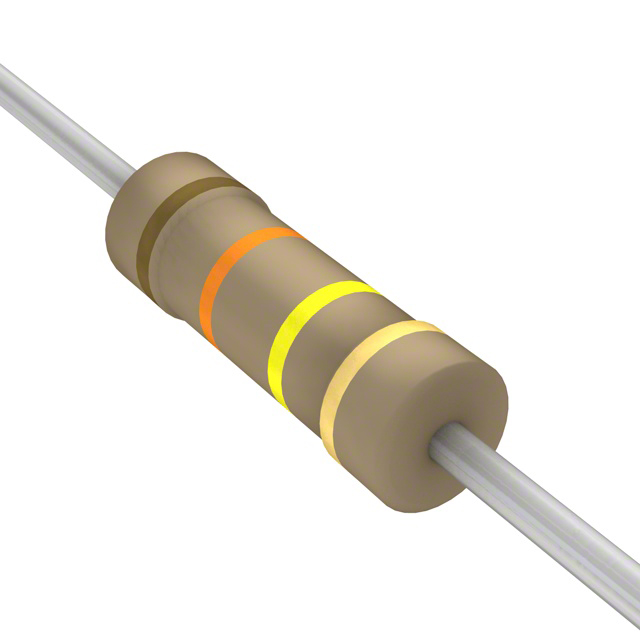

The CF12JB130K is a fixed through-hole axial carbon film resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 130 kOhms with a tolerance of ±5%. The component is rated for a power dissipation of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.106 inches in diameter by 0.335 inches in length (2.70mm x 8.50mm). The device exhibits a temperature coefficient of 0/-500ppm/°C and includes flame retardant safety coatings.

Feature Summary

• Flame retardant coating for enhanced safety
• Carbon film composition for general purpose use
• Axial leaded through-hole mounting style

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose signal conditioning

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation to confirm the exact series designation, as standard CF series listings often utilize 'JT' or 'JA'. Ensure the requested quantity matches available packaging options such as bulk or tape and reel. Confirm RoHS compliance status directly with the manufacturer prior to final procurement decisions.

Selection Notes

Select this component when a 130 kOhm resistance value with 5% tolerance is required in a 1/2W axial form factor. Consider the -500ppm/°C temperature coefficient for stability requirements. Verify that the physical size fits the PCB layout constraints compared to other power ratings in the CF series.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. These components are designed for general-purpose applications in both commercial and industrial environments. The series offers various power ratings and resistance values, providing flexibility for different circuit design needs while maintaining consistent quality standards.

Replacement Considerations

CF12JT130K: Same power rating and resistance but may differ in temperature coefficient specifications.

FAQ

What is the temperature coefficient of the CF12JB130K?

The temperature coefficient is specified as 0/-500ppm/°C.

Does the CF12JB130K have flame retardant properties?

Yes, the component features flame retardant coatings as a standard characteristic.
