CF12JB13M0

Overview

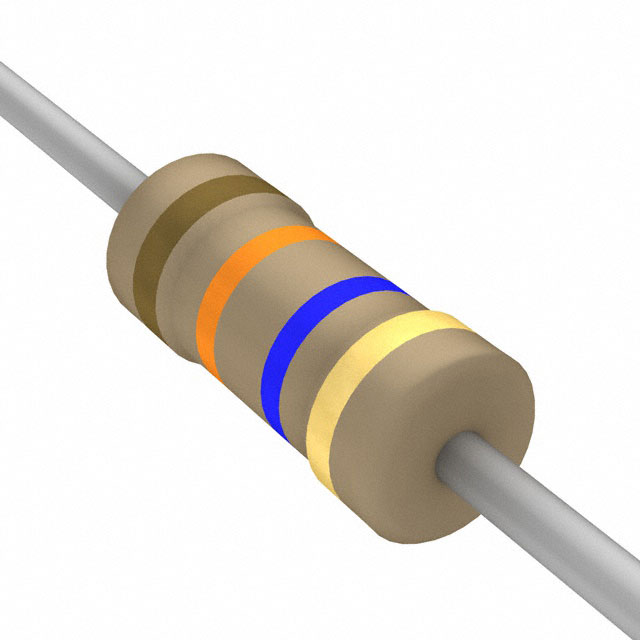

The CF12JB13M0 is a carbon film axial leaded resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 13 MOhms with a tolerance of ±5%. The component has a power rating of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 2.70mm in diameter and 8.50mm in length. The device utilizes copper-plated steel leads with 100% tin plating and carries RoHS compliance certification.

Feature Summary

• Flame retardant coating standard for safety
• Compatible with auto sequencing insertion equipment
• RoHS compliant and lead-free construction

Applications

• Commercial electronic circuits
• Industrial control systems
• General purpose PCB mounting

Procurement Notes

Verify the specific suffix 'JB' indicates bulk packaging, distinct from 'JT' tape-and-reel or 'JA' ammo pack variants. Confirm lead material specifications match application requirements, as standard versions use copper-plated steel. Ensure ordering quantities align with manufacturer minimums for the selected packaging type.

Selection Notes

Select this component for general-purpose applications requiring high resistance values in an axial form factor. Consider the CFM series if space constraints exist, as it offers a smaller footprint. Verify voltage ratings against circuit requirements, noting that higher resistance values may approach maximum working voltage limits.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is designed for commercial and industrial applications, offering flameproof options and Panasert compatibility. It serves as a standard through-hole solution for general circuit protection and signal conditioning tasks.

Replacement Considerations

CF12JT13M0: Same electrical specifications but differs in packaging format.

FAQ

What is the temperature coefficient of the CF12JB13M0?

The temperature coefficient is -1500ppm/°C.

Is the CF12JB13M0 RoHS compliant?

Yes, the component is RoHS compliant and lead-free.
