CF12JB16R0

Overview

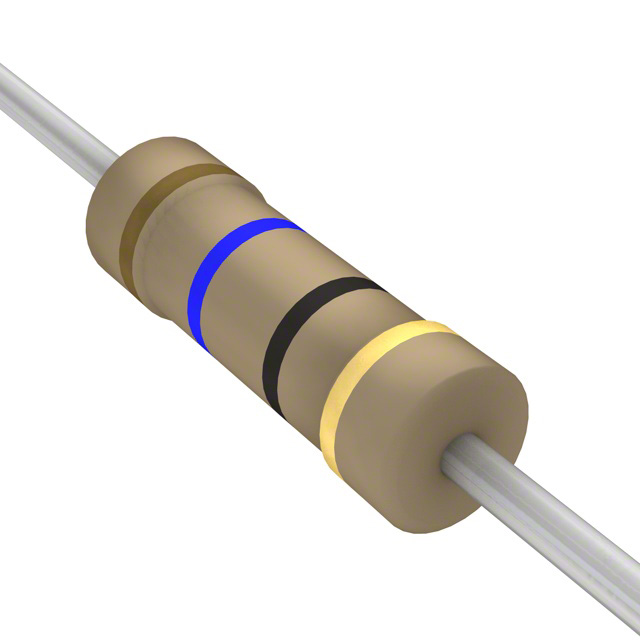

The CF12JB16R0 is a fixed axial leaded carbon film resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 16 Ohms with a tolerance of ±5%. The component is rated for a power dissipation of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.106 inches in diameter by 0.335 inches in length (2.70mm x 8.50mm). The device complies with RoHS3 standards and carries an ECCN classification of EAR99.

Feature Summary

• Constructed from carbon film material for stable resistive performance.
• Features a flame-retardant coating designed to enhance safety during operation.
• Utilizes an axial through-hole package suitable for standard PCB mounting.

Applications

• General purpose electronic circuitry
• Current limiting applications
• Voltage divider networks

Procurement Notes

Verify the specific suffix against official datasheets to confirm exact tolerance and packaging variations. Ensure the procurement channel provides valid manufacturer traceability documentation. Confirm compliance requirements such as RoHS3 status match project specifications before finalizing orders.

Selection Notes

Select this component when a 16 Ohm resistance value is required with moderate precision. The 0.5W power rating supports general signal processing tasks. Verify that the axial form factor fits the available board space and that the operating temperature range meets environmental demands.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is characterized by its use of flame-retardant coatings and axial leads. It serves as a standard passive component for general electronic assemblies requiring reliable resistance values.

Replacement Considerations

CF12JT16R0 is documented as a similar alternative within the same manufacturer lineup, offering comparable electrical characteristics and physical form factors for direct substitution in compatible designs.
