Product Detailed Parameters
- Description：RES 1.5M OHM 1/2W 5% AXIAL
- Series：*
- Mfr：Stackpole Electronics Inc
- Package：Bulk
Download product information
Overview

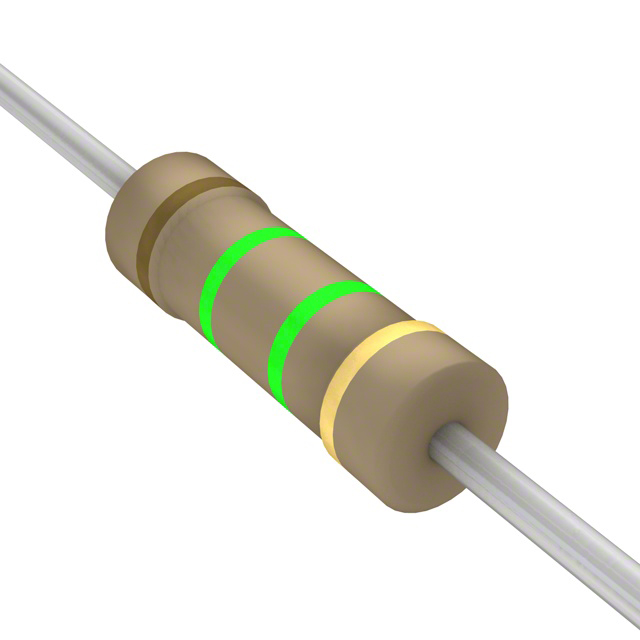

The CF12JB1M50 is a fixed carbon film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 1.5 MOhms with a tolerance of ±5%. The component has a power rating of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial through-hole mounting style with tubular packaging.
Feature Summary
- Constructed using carbon film technology for general-purpose applications
- Features flame retardant coatings as standard
- Supports through-hole mounting for PCB integration
Applications
- Commercial electronic equipment
- Industrial control circuits
- General-purpose signal conditioning
Procurement Notes
Verify the specific suffix against official datasheets to confirm tolerance and voltage ratings, as variations may exist within the CF series. Confirm RoHS compliance status and lead material specifications prior to ordering to ensure alignment with project requirements.
Selection Notes
Select this component for applications requiring high resistance values in a compact axial form factor. Ensure the operating voltage does not exceed the maximum working voltage limits defined in the electrical specifications. Consider thermal derating if ambient temperatures approach the upper operational limit.
Part Context
This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series offers various power ratings and resistance values, designed for cost-effective solutions in commercial and industrial electronics where precise stability is not the primary constraint.
Replacement Considerations
CF12JT1M50: Same series, different tolerance code.
FAQ
What is the temperature coefficient of the CF12JB1M50?
The CF12JB1M50 typically exhibits a negative temperature coefficient ranging from 0 to -400 ppm/°C, consistent with standard carbon film characteristics.
Is the CF12JB1M50 RoHS compliant?
Yes, the CF12JB1M50 is RoHS compliant and lead-free, adhering to environmental standards specified by Stackpole Electronics.
