CF12JB2K40

Overview

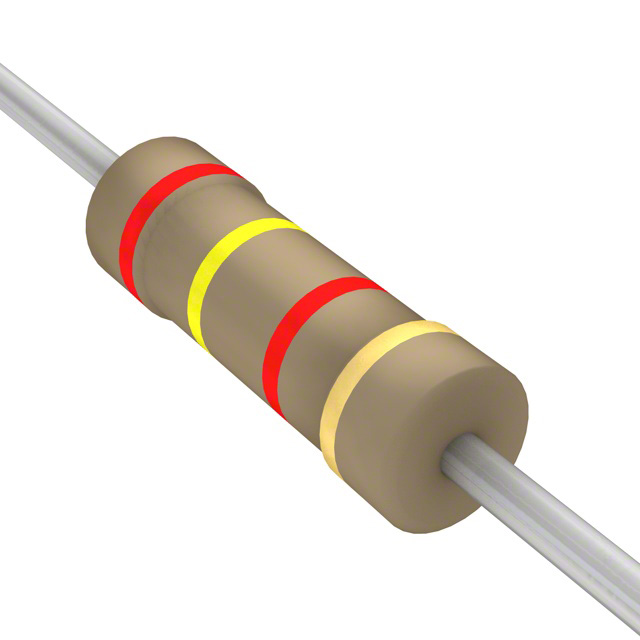

The CF12JB2K40 is a fixed axial leaded carbon film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 2.4 kOhms with a tolerance of ±5%. The component has a power rating of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 2.70mm in diameter and 8.50mm in length. The device complies with RoHS3 standards and carries an ECCN classification of EAR99.

Feature Summary

• Constructed from carbon film material for stable resistive performance.
• Features flame retardant coating for enhanced safety compliance.
• Designed for through-hole mounting on printed circuit boards.

Applications

• General purpose electronic circuits
• Power supply units
• Industrial control systems

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation to confirm the exact tolerance and coating specifications, as distributor listings may vary. Ensure the required packaging format matches the project needs, as this series is available in bulk or tape-and-reel options depending on the specific variant ordered.

Selection Notes

Select this component when a standard 2.4 kOhm resistance is required with moderate precision. The 1/2W power rating allows for higher dissipation compared to smaller packages. Verify that the operating environment stays within the specified -55°C to +155°C range to ensure long-term reliability and adherence to the rated temperature coefficient.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is characterized by its robust construction and suitability for general-purpose applications. The CF12 designation indicates a 1/2W power rating within the axial leaded form factor, distinguishing it from lower-power variants like the CF06 or CF14 series.

Replacement Considerations

CF12JT2K40

FAQ

What is the temperature coefficient for the CF12JB2K40?

The temperature coefficient ranges from 0 to -500ppm/°C.

Is the CF12JB2K40 RoHS compliant?

Yes, the component is RoHS3 compliant.
