CF12JB3M60

Overview

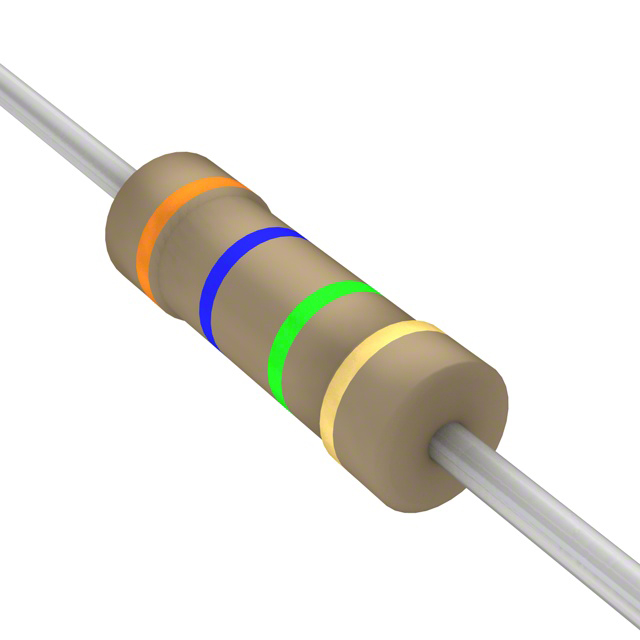

The CF12JB3M60 is a carbon film axial leaded resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 3.6 MOhms with a tolerance of ±5%. The component has a power rating of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. It utilizes copper-plated steel leads with tin plating and carries RoHS compliance certification.

Feature Summary

• Constructed using carbon film technology for stable resistive performance in commercial and industrial applications.
• Features standard flame retardant coatings to enhance safety during operation.
• Designed with axial leads compatible with through-hole PCB mounting and automated insertion processes.

Applications

• General purpose circuits in commercial electronics
• Industrial control systems requiring reliable passive components
• Consumer appliance circuitry

Procurement Notes

Verify the specific suffix against official Stackpole documentation to confirm exact lead finish and packaging configuration. Ensure compatibility with automated assembly equipment if high-volume production is planned. Confirm RoHS status requirements match project specifications before finalizing procurement orders.

Selection Notes

Select this component when a 3.6 MOhm resistance value is required in a compact axial form factor. Consider its 0.5W power rating and wide operating temperature range for general-purpose environments. Evaluate lead wire composition and coating standards against specific environmental or regulatory constraints.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series offers various power ratings and resistance values, providing a cost-effective solution for general electronic applications. The CF series is widely recognized for its reliability and compliance with international environmental standards.

FAQ

What is the maximum working voltage for the CF12JB3M60?

The maximum working voltage is determined by the component's power rating and construction, typically specified in the official datasheet for the CF series.

Is the CF12JB3M60 RoHS compliant?

Yes, the CF series resistors from Stackpole Electronics are RoHS compliant, lead-free, and halogen-free.
