CF12JB47R0

Overview

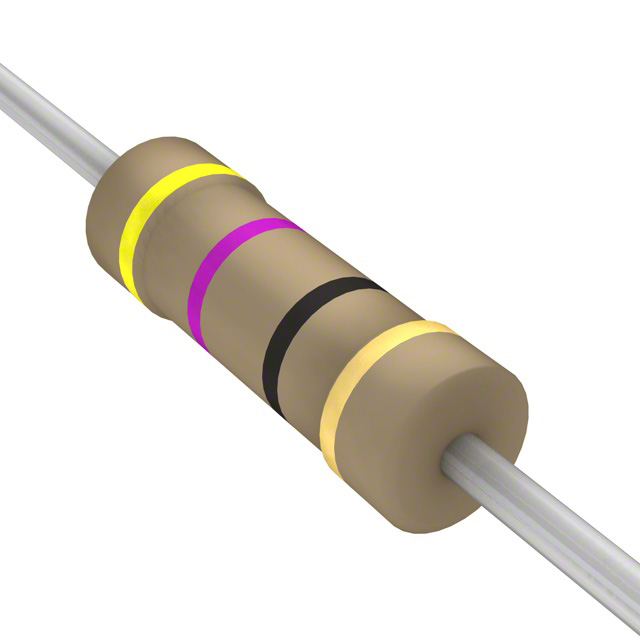

The CF12JB47R0 is a carbon film axial leaded resistor manufactured by Stackpole Electronics Inc. It belongs to the CF series and features a nominal resistance of 47 Ohms with a tolerance of ±5%. The component is rated for a power dissipation of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 8.50mm in length and 3.10mm in width, with a standard axial package configuration.

Feature Summary

• Constructed using carbon film technology for stable resistive performance.
• Features an axial leaded package designed for through-hole PCB mounting.
• Includes flame-retardant coating and safety characteristics as part of the series design.

Applications

• General purpose commercial electronics circuits
• Industrial control system signal conditioning
• Power supply current limiting applications

Procurement Notes

Verify the specific suffix JB against official Stackpole documentation to confirm packaging type and exact mechanical tolerances. Ensure the voltage rating aligns with circuit requirements. Confirm RoHS compliance status via the manufacturer's current series list before finalizing procurement specifications.

Selection Notes

Select this component when a 47 Ohm resistance value with 5% tolerance is required for general-purpose applications. Consider the 0.5W power rating and wide operating temperature range for environments exceeding standard commercial limits. Verify that the axial form factor fits the available board space and mounting constraints.

Part Context

This resistor is part of the CF series from Stackpole Electronics, which provides standard carbon film components for broad electronic manufacturing needs. The CF series is widely utilized in various industries requiring reliable passive components. The CF12JB47R0 represents a specific variant within this lineup, offering standardized electrical parameters for common circuit designs.

Replacement Considerations

CF12JT47R0
