CF12JB62R0

Overview

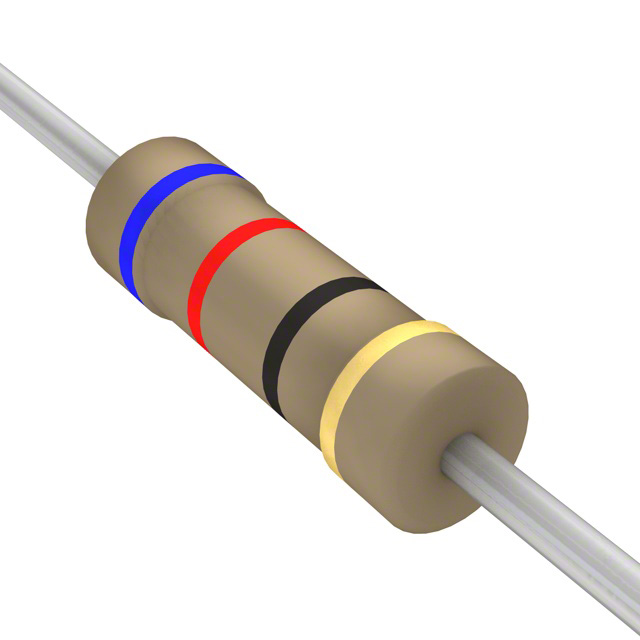

The CF12JB62R0 is a through-hole axial carbon film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 62 Ohms with a tolerance of ±5% and a power rating of 0.5W (1/2W). The component operates within a temperature range of -55°C to +155°C and has a temperature coefficient of 0/-400ppm/°C. Dimensions are 0.106" diameter x 0.335" length (2.70mm x 8.50mm). It carries flame retardant safety coating and complies with RoHS3 standards.

Feature Summary

• Flame retardant safety coating for enhanced operational security
• Carbon film composition providing stable general-purpose performance
• Axial leaded package suitable for standard PCB mounting

Applications

• General purpose electronic circuitry
• Current limiting applications
• Voltage divider networks

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation, as it may indicate Carbon Composition rather than Carbon Film. Confirm current availability status directly with authorized distributors, as stock levels fluctuate. Ensure the selected packaging type matches assembly requirements. Cross-reference datasheets for any recent product change notices affecting specifications or compliance.

Selection Notes

Select this component when a 62 Ohm resistance with 5% tolerance is required in a 1/2W axial form factor. Consider the operating temperature range up to 155°C for thermal environments. Verify if the specific material designation aligns with design constraints regarding pulse handling or noise characteristics compared to other series like CFM or RSF.

Part Context

This part belongs to the CF series of resistors from Stackpole Electronics. It serves as a standard axial leaded component for general electronics manufacturing. The CF series is widely used in consumer and industrial equipment requiring reliable passive components. Availability may vary between distributors, with some listing equivalent parts like CF12JT62R0.

Replacement Considerations

CF12JT62R0 is listed as a parameter-equivalent alternative by distributors.
